Removal And Installation

  1. Remove the engine cover.

    (Refer to Engine and Transmission Assembly - "ENGINE COVER ")

  2. Disconnect the battery negative terminal.
  3. Remove the engine room under cover.

    (Refer to Engine and Transmission Assembly - "ENGINE ROOM UNDER COVER ")

  4. Drain the coolant.

    (Refer to Cooling System - "COOLANT ")

  5. Remove the air intake hose.

    (Refer to "AIR CLEANER ")

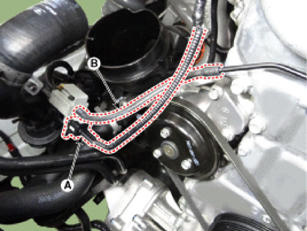

  6. Disconnect the recirculation valve connector (A) and the vacuum hose (B).
    G14175286Courtesy of HYUNDAI MOTOR AMERICA

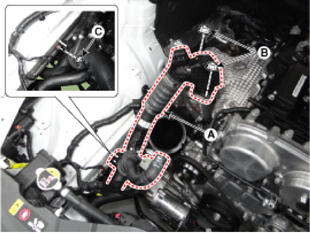

  7. Remove the intercooler inlet hose and pipe (A).

    Tightening torque

    Nuts (B): 14.7 - 19.6 N.m (1.5 - 2.0 kgf.m, 10.8 - 14.5 lb-ft)

    Nut (C): 14.7 - 19.6 N.m (1.5 - 2.0 kgf.m, 10.8 - 14.5 lb-ft)

    G14175287Courtesy of HYUNDAI MOTOR AMERICA

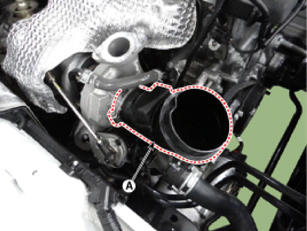

  8. Remove the air intake hose (A).

    Tightening torque:

    2.8 - 4.8 N.m (0.3 - 0.5 kgf.m, 2.2 - 3.6 lb-ft)

    G14175288Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:
    • Remove the air intake hose after checking that the engine has cooled down.
    • Do not apply excessive force when removing the air intake hose.
    • Do not reuse the rubber seal when removing the air intake hose.

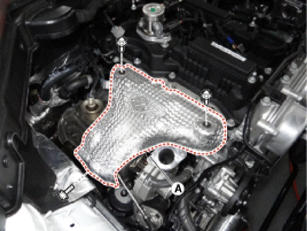

  9. Remove the heat protector (A).

    Tightening torque:

    7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb-ft)

    G14175289Courtesy of HYUNDAI MOTOR AMERICA
  10. Remove the heated oxygen sensor.

    (Refer to Engine Control/Fuel System - "HEATED OXYGEN SENSOR (HO2S) ")

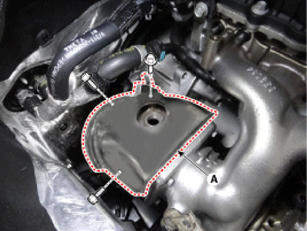

  11. Remove the warm-up catalytic converter (WCC) heat protector (A).

    Tightening torque:

    18.6 - 23.5 N.m (1.9 - 2.4 kgf.m, 13.7 - 17.4 lb-ft)

    G14175290Courtesy of HYUNDAI MOTOR AMERICA
  12. Remove the front muffler.

    (Refer to "MUFFLER ")

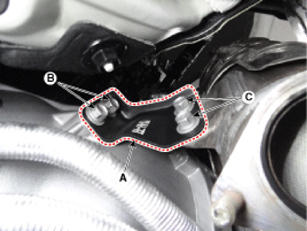

  13. Remove the warm-up catalytic converter (WCC) stay (A).

    Tightening torque

    Bolts (B):

    18.6 - 27.5 N.m (1.9 - 2.8 kgf.m, 13.7 - 20.3 lb-ft)

    Bolts (C):

    52.0 - 57.9 N.m (5.3 - 5.9 kgf.m, 38.3 - 42.7 lb-ft)

    G14175291Courtesy of HYUNDAI MOTOR AMERICA

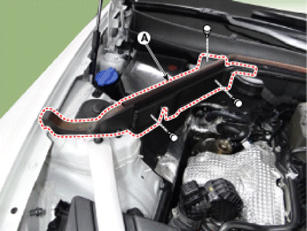

  14. Remove the RH rear strut bar cover (A).
    G14175292Courtesy of HYUNDAI MOTOR AMERICA

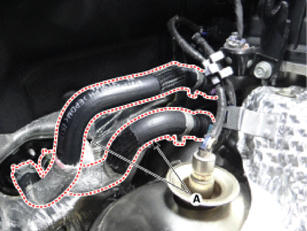

  15. Disconnect the heater hose (A).
    G14175293Courtesy of HYUNDAI MOTOR AMERICA

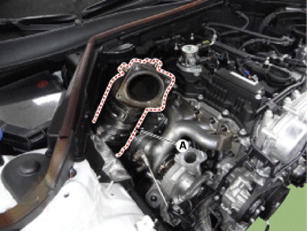

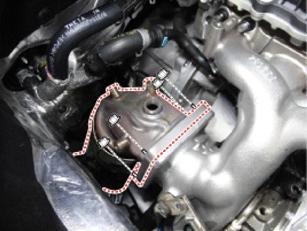

  16. Remove the warm-up catalytic converter (WCC) (A) with gasket.

    Tightening torque:

    49.0 - 53.9 N.m (5.0 - 5.5 kgf.m, 36.2 - 39.7 lb-ft)

    G14175294Courtesy of HYUNDAI MOTOR AMERICA
    G14175295Courtesy of HYUNDAI MOTOR AMERICA

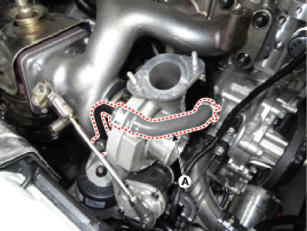

  17. Remove the turbocharger water feed pipe and hose (A).

    Tightening torque:

    26.5 - 32.4 N.m (2.7 - 3.3 kgf.m, 19.5 - 23.7 lb-ft)

    G14175296Courtesy of HYUNDAI MOTOR AMERICA

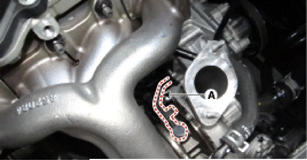

  18. Remove the oil feed pipe (A).

    Tightening torque:

    11.8 - 17.6 N.m (1.2 - 1.8 kgf.m, 8.7 - 41.1 lb-ft)

    G14175297Courtesy of HYUNDAI MOTOR AMERICA

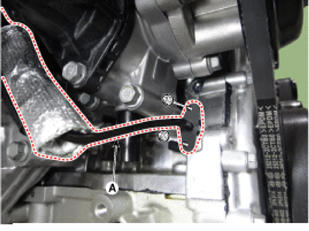

    Tightening torque:

    7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb-ft)

    G14175298Courtesy of HYUNDAI MOTOR AMERICA

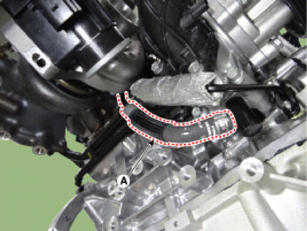

  19. Disconnect the turbocharger water drain hose (A).
    G14175299Courtesy of HYUNDAI MOTOR AMERICA

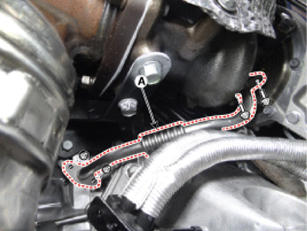

  20. Remove the turbocharger oil drain pipe (A)

    Tightening torque:

    7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb-ft)

    G14175300Courtesy of HYUNDAI MOTOR AMERICA

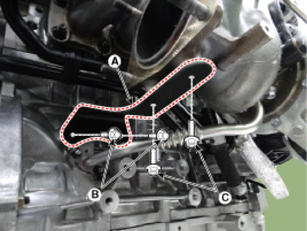

  21. Remove the turbo manifold module stay (A).

    Tightening torque

    Bolts (B):

    18.6 - 27.5 N.m (1.9 - 2.8 kgf.m, 13.7 - 20.3 lb-ft)

    Bolts (C):

    52.0 - 57.9 N.m (5.3 - 5.9 kgf.m, 38.3 - 42.7 lb-ft)

    G14175301Courtesy of HYUNDAI MOTOR AMERICA

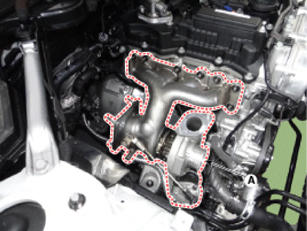

  22. Remove the turbo manifold module (A).

    Tightening torque:

    49.0 - 53.9 N.m (5.0 - 5.5 kgf.m, 36.2 - 39.7 lb-ft)

    G14175302Courtesy of HYUNDAI MOTOR AMERICA
  23. Remove the electric waste gate actuator (EWGA).

    (Refer to Engine Control/Fuel System - "ELECTRIC WASTE GATE ACTUATOR (EWGA) ")

  24. Install in the reverse order of removal.
    NOTE:
    NOTE:
    • Always use the new turbo manifold module gasket.
    • Always use the new turbo manifold module nuts.
    • Take care whether the oil feed pipe & hose assembly is interfered with turbo manifold module and any surrounding parts.
    • If the oil feed pipe & hose is damaged, engine oil is not supplied sufficiently to the turbocharger then it may damage the turbocharger. If the oil drain pipe & hose is damaged and clogged, engine oil is not drained smoothly then it may cause oil leaks from the turbocharger. Be care full the oil feed pipe & hose not to damage (Bent, crushed, torn or cracked).
    • When installing, replace with a new gasket. When installing the turbo manifold module, tighten the nuts with pre-torque first, and then tighten the nuts with specified torque in the sequence shown.
    Fig 1: Exhaust Manifold Nuts Tightening Sequence
    G13539056Courtesy of HYUNDAI MOTOR AMERICA
