Components And Components Location: Components

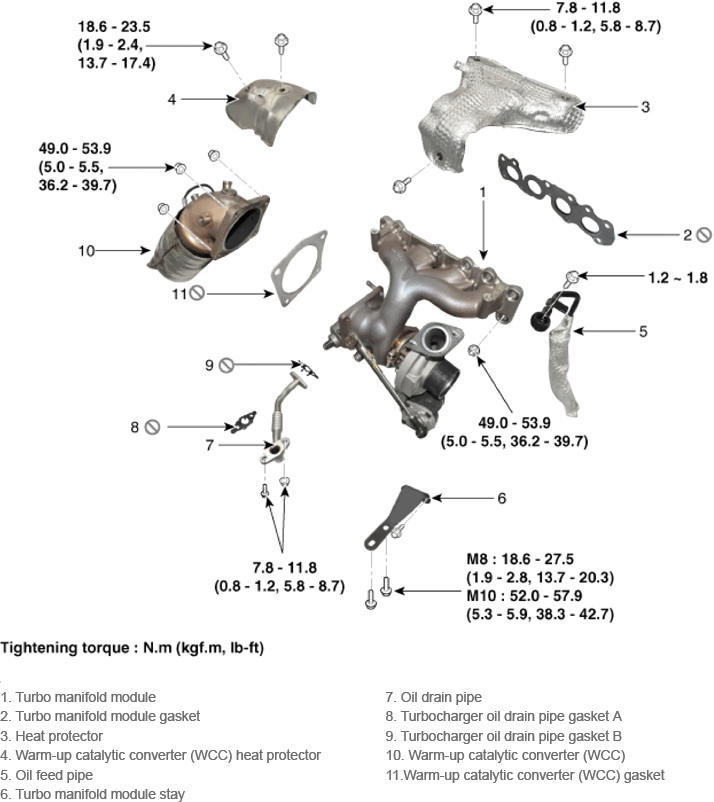

Fig 1: Turbocharger, Exhaust Manifold And Catalytic Converter Components Location With Torque Specifications

G14175285

Courtesy of HYUNDAI MOTOR AMERICA
