Intercooler outlet Hose and Pipe

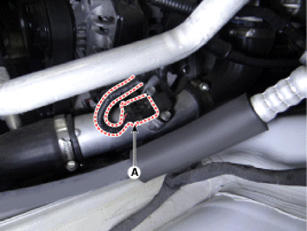

Disconnect the booster pressure sensor connector (A).

Courtesy of HYUNDAI MOTOR AMERICA

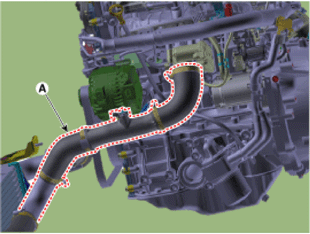

Remove the intercooler outlet hose and pipe (A).
Tightening torque

Hose clamp:

4.9 - 6.9 N.m (0.5 - 0.7 kgf.m, 3.6 - 5.1 lb-ft)

(If equipped with a cap, tighten it until the cap is removed.)

Bolt:

14.7 - 19.6 N.m (1.5 - 2.0 kgf.m, 10.8 - 14.5 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
Remove the engine room under cover.
(Refer to Engine and Transmission Assembly - "ENGINE ROOM UNDER COVER ")

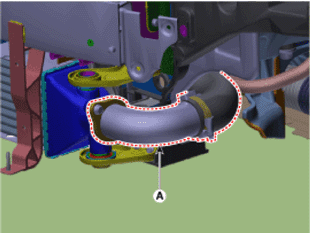

Remove the intercooler outlet hose and pipe (A).
Tightening torque:

21.6 - 26.5 N.m (2.2 - 2.7 kgf.m, 15.9 - 19.5 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
- When installing the intercooler pipe, align the pipe with the O-ring"s groove.
- When installing the intercooler pipe, install a new O-ring.
Install in the reverse order of removal.
