Air Cleaner Element

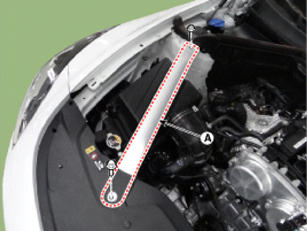

  1. Remove the RH front strut bar (A).
    G14175255Courtesy of HYUNDAI MOTOR AMERICA

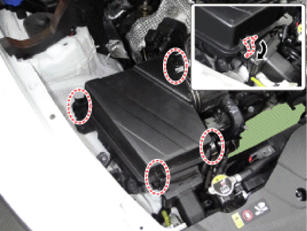

  2. Open the air cleaner element cover by unlocking the clamp.
    G14175256Courtesy of HYUNDAI MOTOR AMERICA

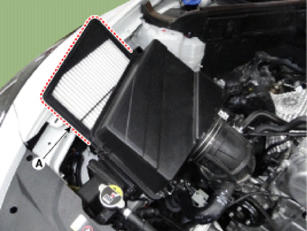

  3. Replace the air cleaner element (A) with a new one.
    G14175257Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:
    • If there are foreign substances inside the air cleaner assembly, wipe the inside of the air cleaner assembly and then replace the air cleaner element.
  4. Close the air cleaner cover by hooking the clamps.
