Removal And Installation

  1. Remove the engine cover.

    (Refer to Engine and Transmission Assembly - "ENGINE COVER ")

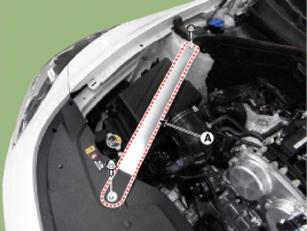

  2. Remove the RH front strut bar (A).
    G14175253Courtesy of HYUNDAI MOTOR AMERICA

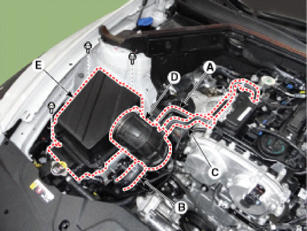

  3. Remove the air cleaner assembly.
    1. Disconnect the breather hose (A), recirculation hose (B) and vacuum hose (C).
    2. Disconnect the air intake hose (D) and then remove the air cleaner assembly (E).

      Tightening torque

      Hose clamp:

      2.8 - 4.8 N.m (0.3 - 0.5 kgf.m, 2.2 - 3.6 lb-ft)

      Air cleaner assembly:

      7.8 - 9.8 N.m (0.8 - 1.0 kgf.m, 5.8 - 7.2 lb-ft)

      G14175254Courtesy of HYUNDAI MOTOR AMERICA
  4. Install in the reverse order of removal.
