[EVAP. Leakage Test]
WARNING: This page is about a different variant/trim than selected.

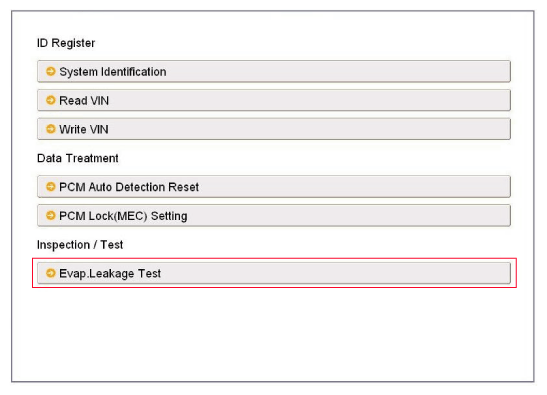

- Select "Evap. Leakage Test".
 Courtesy of HYUNDAI MOTOR AMERICA
|

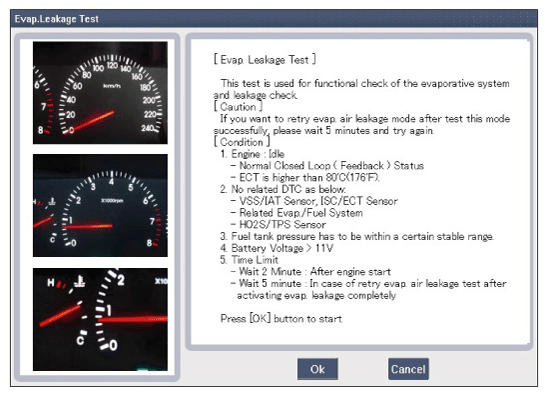

- Proceed with the test according to the screen introductions.
NOTE:
- [EVAP. Leakage Test Condition]
- Ignition key on, Engine at idle
- No Trouble Code
- Fuel Level: 15 - 85%
- Select Lever Position: P or N
- ECT: Below 105°C (221°F)
 Courtesy of HYUNDAI MOTOR AMERICA
|
