Repair Procedures: Replacement
CAUTION:
- Put on gloves to prevent hand injuries.
NOTE:
- When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
- When removing the interior trim pieces, use a plastic panel removal tool not to damage the surface.
- Take care not to bend or scratch the trim and panels.
- Disconnect the negative (-) battery terminal.
- Remove the floor console assembly.
(Refer to Floor Console - "FLOOR CONSOLE ASSEMBLY ")
- Remove the crash pad side garnish assembly.
(Refer to Crash Pad - "CRASH PAD SIDE GARNISH ASSEMBLY [RH] ")
- Remove the center fascia panel assembly.
(Refer to Heating, Ventilation and Air Conditioning - "CONTROLLER ")
- Remove the monitor fascia panel (A).
- Remove the AVN head unit.
(Refer to Body Electrical System - "AVN HEAD UNIT ")
- Remove the cluster fascia panel.
(Refer to Crash Pad - "CLUSTER FASCIA PANEL ")
- Remove the cowl side trim.
(Refer to Interior Trim - "COWL SIDE TRIM ")
- Remove the crash pad lower panel.
(Refer to Crash Pad - "CRASH PAD LOWER PANEL ")
- Remove the glove box.
(Refer to Crash Pad - "GLOVE BOX ")
- Remove the crash pad under cover [RH].
(Refer to Crash Pad - "CRASH PAD UNDER COVER [RH] ")
- After loosening the mounting screws, bolts and nuts, remove the glove box housing (A) by using a screw driver.
- Disconnect the glove box lamp connector (A), the main trunk switch connector (B) and the lamp switch connector (C).

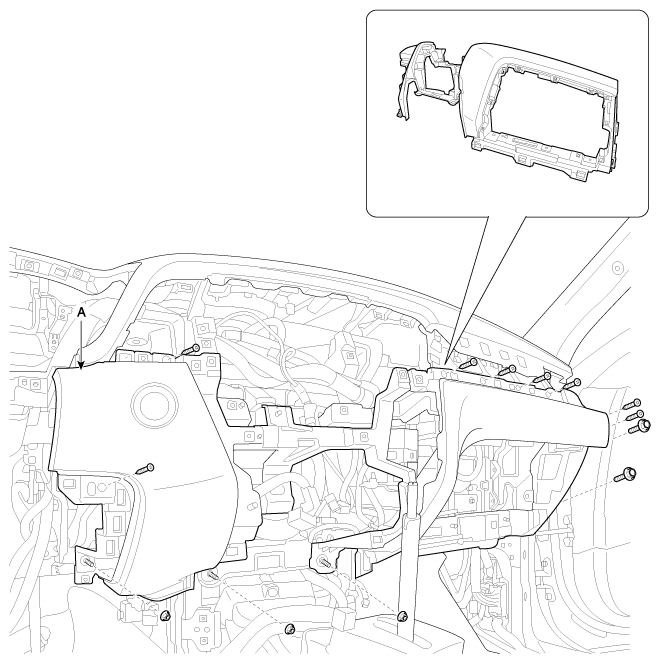

- After loosening the mounting screws, bolts and nuts, remove the crash pad main lower assembly (A).
- Remove the start button connector (A).
- Install in the reverse order of removal.
Information
- Make sure the connector is connected properly.
- Replace any damage clips.
