Repair Procedures: Replacement

CAUTION:
  • Put on gloves to prevent hand injuries.
NOTE:
  • When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
  • When removing the interior trim pieces, use a plastic panel removal tool not to damage the surface.
  • Take care not to bend or scratch the trim and panels.
  1. Disconnect the negative (-) battery terminal.
  2. Recover the refrigerant with a recovery/recycling/charging station.
  3. When the engine is cool, drain the engine coolant from the radiator.

    (Refer to Engine Mechanical System - "COOLANT ")

  4. Remove the cowl top cover.

    (Refer to "COWL TOP COVER ")

  5. Disconnect the expansion valve from the evaporator core.

    (Refer to Heating, Ventilation And Air Conditioning - "HEATER UNIT ")

  6. Disconnect the inlet and outlet heater hoses from the heater unit.

    (Refer to Heating, Ventilation And Air Conditioning - "HEATER UNIT ")

  7. Loosen the engine room cowl cross bar assembly mounting bolts (A).
    G12657119Courtesy of HYUNDAI MOTOR AMERICA
  8. Remove both sides of front seat assembly.

    (Refer to Front Seat - "FRONT SEAT ASSEMBLY ")

  9. Remove the main crash pad assembly.

    (Refer to Crash Pad - "MAIN CRASH PAD ASSEMBLY ")

  10. Disconnect the steering column connectors.

    (Refer to Steering System - "STEERING COLUMN AND SHAFT ")

  11. Loosen the mounting nuts and through bolts in the frontal area and lower the steering column.

    (Refer to Steering System - "STEERING COLUMN AND SHAFT ")

  12. Remove the shift lever assembly (A).

    (Refer to Automatic Transaxle System - "SHIFT LEVER ")

  13. Disconnect the Airbag Control Module (SRSCM) connector (A).
    G12657120Courtesy of HYUNDAI MOTOR AMERICA
  14. Disconnect the connector (A) and the mounting wiring fasteners in the front pillar.

    [Driver"s]

    G12657121Courtesy of HYUNDAI MOTOR AMERICA

    [Passenger"s]

    G12657122Courtesy of HYUNDAI MOTOR AMERICA
  15. Disconnect the passenger compartment junction box connectors (A).
    G12657123Courtesy of HYUNDAI MOTOR AMERICA
  16. Disconnect the multi box connectors (A).

    [Driver"s]

    G12657124Courtesy of HYUNDAI MOTOR AMERICA

    [Passenger"s]

    G12657125Courtesy of HYUNDAI MOTOR AMERICA

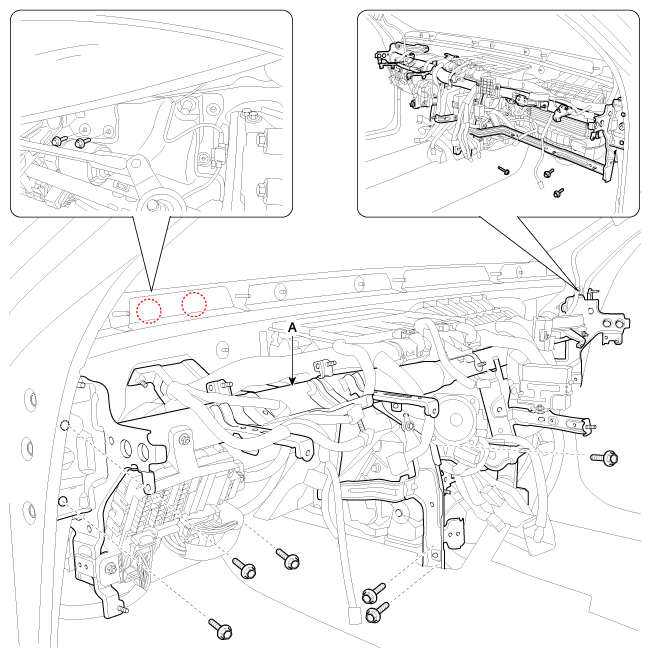

  17. After loosening the nuts and bolts, remove the cowl cross bar and heater & blower unit (A) together.
    G12657126Courtesy of HYUNDAI MOTOR AMERICA
  18. Disconnect the heater & blower unit connectors.
  19. Remove the heater and blower unit (A) from the cowl cross bar (B) after loosening the mounting nuts.
    G12657127Courtesy of HYUNDAI MOTOR AMERICA
  20. Install in the reverse order of removal.

    Information

    • Make sure the crash pad fits onto the guide pins correctly.
    • Before tightening the bolts, make sure the crash pad wire harnesses are not pinched.
    • Make sure the connectors are plugged in properly, and the antenna lead is connected properly.
    • Enter the anti-theft code for the radio, then enter the customer's radio station presets.
    • Make sure that each of the assembly components operates properly.
    • Replace any damaged clips (pin-type retainers).
