Description & Operation: Description

WARNING: This page is about a different variant/trim than selected.

A ratchet tightening device on the threaded fuel filler cap reduces the chances of incorrect installation, which seals the fuel filler. After the gaskets on the fuel filler cap and the filler neck flange contact each other, the ratchet produces a loud clicking noise indicating that the seal has been set.

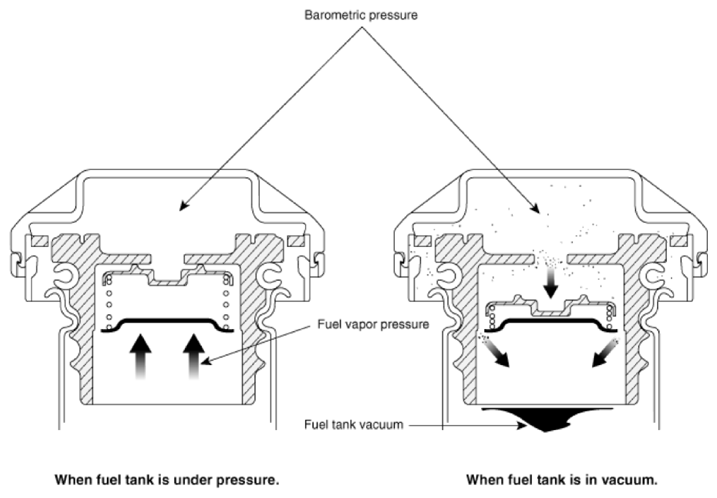

G13539262Courtesy of HYUNDAI MOTOR AMERICA
