Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
  2. Remove the rear-left wheel & tire and wheel house cover.
  3. Remove the fuel tank air filter.

    (Refer to Emission Control System - FUEL TANK AIR FILTER ")

  4. Disconnect the vapor hose quick-connector (A).

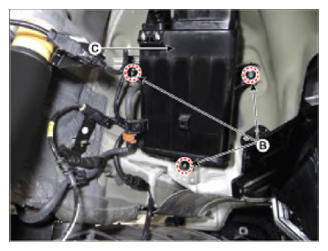

  5. Remove the canister assembly (C) from the vehicle after removing the mounting nuts (B).
    G13539253Courtesy of HYUNDAI MOTOR AMERICA
    G13539254Courtesy of HYUNDAI MOTOR AMERICA
    G13539255Courtesy of HYUNDAI MOTOR AMERICA
