Repair Procedures: Reassembly

WARNING: This page is about a different variant/trim than selected.

NOTE:

Thoroughly clean all parts to be assembled.
Before installing the parts, apply fresh engine oil to all sliding and rotating surfaces.
Replace oil seals with new ones.

Install valves.

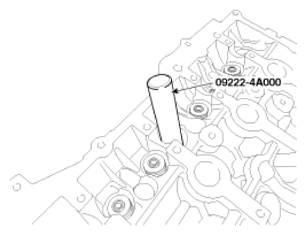

Using SST (09222-4A000), push in a new oil seal.

NOTE:

Do not reuse old valve stem seals.

Incorrect installation of the seal could result in oil leakage past the valve guides.

Courtesy of HYUNDAI MOTOR AMERICA

Install the valve, valve spring and spring retainer.
NOTE:
- Place valve springs so that the side coated with enamel faces toward the valve spring retainer and then installs the retainer.

Using the SST (09222-3K000, 09222-3K100), compress the spring and install the retainer locks. After installing the valves, ensure that the retainer locks are correctly in place before releasing the valve spring compressor.

Courtesy of HYUNDAI MOTOR AMERICA

Lightly tap the end of each valve stem two or three times with the wooden handle of a hammer to ensure proper seating of the valve and retainer lock.

Install the MLAs after applying engine oil.
Check that the MLA rotates smoothly by hand.

Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
- MLA can be reinstalled in its original position.
- However, the valve lash clearances must be rechecked and adjusted accordingly before the cylinder head is installed onto the cylinder block.
- Refer to VALVE CLEARANCE INSPECTION & ADJUSTMENT for Valve Clearance checking and adjustment procedure.
