Repair Procedures: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
- Use fender covers to avoid damaging painted surfaces.
- To avoid damage, unplug the wiring connectors carefully while holding the connector portion.
Information
- Mark all wiring and hoses to avoid misconnection.
- Disconnect the battery negative terminal.
- Remove the engine cover.
(Refer to Engine and Transmission Assembly - "ENGINE COVER ")

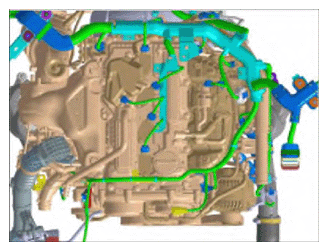

- Disconnect the wiring connectors and harness clamps and remove the connector brackets around the cylinder head cover.
- Remove the ignition coils.
(Refer to Engine Electrical System - "IGNITION COIL ")

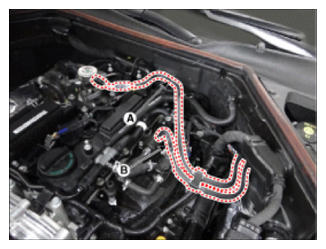

- Disconnect the fuel hose (A) and purge control solenoid valve (PCSV) hose (B).
- Remove the high pressure fuel pump.
(Refer to Engine Control/Fuel System - "HIGH PRESSURE FUEL PUMP ")

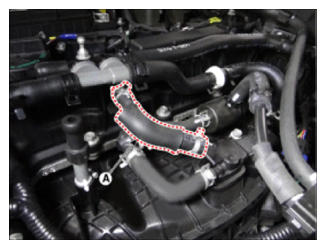

- Disconnect the positive crankcase ventilation (PCV) hose (A).

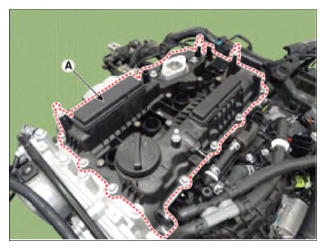

- Remove the cylinder head cover (A).
