Repair Procedures: Installation
WARNING: This page is about a different variant/trim than selected.
- Install cylinder head cover.

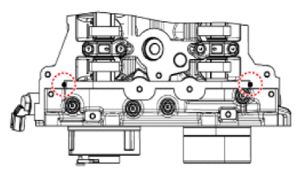

- The hardening sealant located on the upper area between timing chain cover and cylinder head should be removed before assembling cylinder head cover.
- After applying sealant, it should be assembled within 5 minutes.
Bead width: 4.0 - 5.0 mm (0.16 - 0.20 in.)
Sealant: Loctite 5900H or equivalent

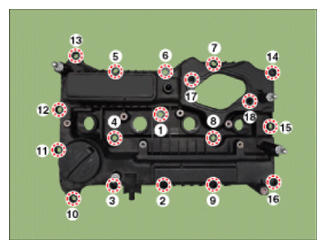

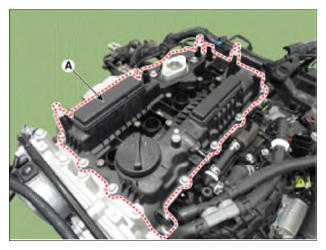

- Install the cylinder head cover (A) by tightening the bolts as following method.
Tightening torque
1st step: 3.9 - 5.9 N.m (0.4 - 0.6 kgf.m, 2.9 - 4.3 lb-ft)
2nd step: 7.8 - 9.8 N.m (0.8 - 1.0 kgf.m, 5.8 - 7.2 lb-ft)
NOTE:- Do not reuse cylinder head cover gasket.
- The firing and/or blow out test should not be performed within 30 minutes after the cylinder head cover was assembled.
- Install the other parts in the reverse order of removal.
