Repair Procedures: Removal

Information

• Mark all wiring and hoses to avoid misconnection.
• Turn the crankshaft pulley so that the No. 1 piston is at top dead center.

1. Remove the cylinder head cover.

   (Refer to Cylinder Head Assembly - "CYLINDER HEAD COVER ")

2. Remove the timing chain

   (Refer to Timing System - "TIMING CHAIN ")

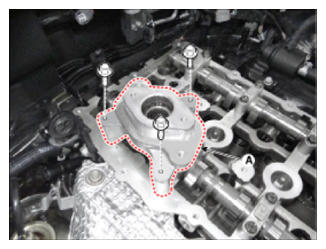

3. Remove the high pressure fuel pump bracket (A).

   Courtesy of HYUNDAI MOTOR AMERICA

4. Remove it by breaking the center of E-CVVT motor plug (A).

   Courtesy of HYUNDAI MOTOR AMERICA

   NOTE:

   • Remove after 30 minutes of switching "OFF" the ignition to drain out the oil inside the E-CVVT motor plug.
   • Do not tilt the front of engine (timing chain cover side) downward as residual oil may flow out during E-CVVT motor plug removal.
   • If oil flows out during E-CVVT motor plug removal, wipe off immediately and block the motor shaft inlet with a clean towel.

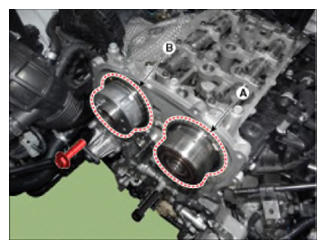

5. Disconnect the intake E-CVVT assembly (A) and exhaust CVVT assembly (B).

   Courtesy of HYUNDAI MOTOR AMERICA

   Information

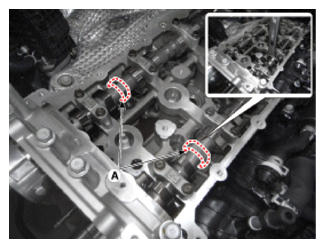

   • When remove the CVVT assembly bolt, hold the camshaft with a wrench to prevent the camshaft (A) from rotating.

     Courtesy of HYUNDAI MOTOR AMERICA

6. Remove the camshaft.

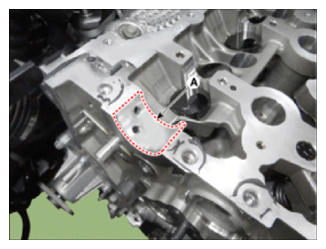

   1. Remove the front camshaft bearing cap (A) with the upper bearing.

      Courtesy of HYUNDAI MOTOR AMERICA

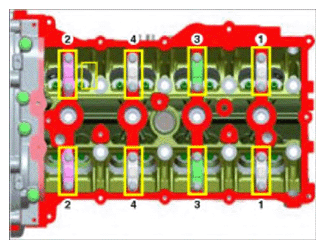

   2. Remove the camshaft bearing caps in the sequence shown.
      Fig 1: Camshaft Bearing Caps Bolts Loosening Sequence

      Courtesy of HYUNDAI MOTOR AMERICA
   3. Remove the camshafts (A).

      Courtesy of HYUNDAI MOTOR AMERICA

   4. Remove the exhaust camshaft lower bearing (A).

      Courtesy of HYUNDAI MOTOR AMERICA
