Repair Procedures: Installation

WARNING: This page is about a different variant/trim than selected.

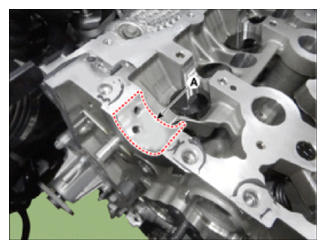

  1. Install the exhaust camshaft lower bearing (A).
    G13538779Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:
    • Apply a light coat of engine oil on camshaft journals.
  2. Install the camshafts (A).
    G13538780Courtesy of HYUNDAI MOTOR AMERICA
  3. Install the exhaust camshaft upper bearing (A) to the camshaft front bearing cap.
    G13538781Courtesy of HYUNDAI MOTOR AMERICA
  4. Install the camshaft bearing caps.
    1. Using a gasket scraper, remove all the old packing material from the gasket surfaces.
    2. The sealant locations on the cylinder head and the counter parts (front camshaft bearing cap) must be free of harmful foreign materials, oil, dust and moisture. Spraying cleaner on the surface and wiping with a clean duster.

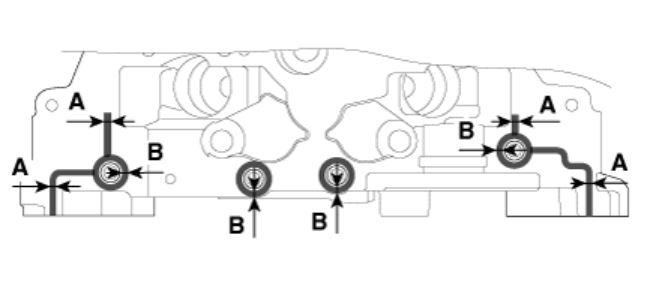

    3. Before assembling the front camshaft bearing cap, liquid sealant should be applied on the cylinder head surfaces.

      The part must be assembled within 5 minutes after sealant was applied.

      Bead width

      Section A:  2.0 - 3.0 mm (0.08 - 0.12 in.)

      Section B:  1.5 - 2.5 mm (0.06 - 0.10 in.)

      G13538782Courtesy of HYUNDAI MOTOR AMERICA

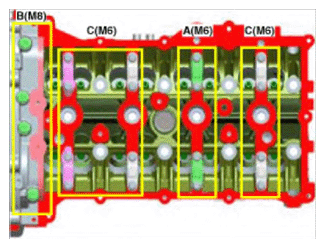

  5. Install camshaft bearing caps (A) in their proper locations.

    Tightening order

    Group A → Group B → Group C.

    Tightening torque:

    Step 1

    M6: 5.9 N.m (0.6 kgf.m, 4.3 lb-ft)

    M8: 14.7 N.m (1.5 kgf.m, 10.8 lb-ft)

    Step 2

    M6: 10.8 - 12.7 N.m (1.1 - 1.3 kgf.m, 8.0 - 9.4 lb-ft)

    M8: 31.3 - 35.3 N.m (3.2 - 3.6 kgf.m, 23.1 - 26.0 lb-ft)

    G13538783Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:
    • Be careful not to change the position and direction of bearing caps.

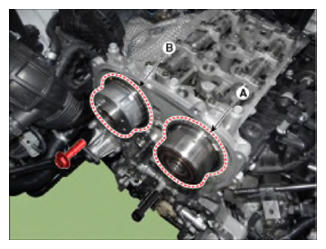

  6. Install the intake E-CVVT assembly (A) and exhaust CVVT assembly (B).

    Tightening torque:

    Intake E-CVVT Assembly

    73.5 - 83.4 N.m (7.5 - 8.5 kgf.m, 54.2 - 61.5 lb-ft)

    Exhaust CVVT Assembly

    53.9 - 63.7 N.m (5.5 - 6.5 kgf.m, 39.7 - 47.0 lb-ft)

    G13538784Courtesy of HYUNDAI MOTOR AMERICA

    Information

    • When installing the CVVT assembly bolt, hold the camshaft with a wrench to prevent the camshaft (A) from rotating.

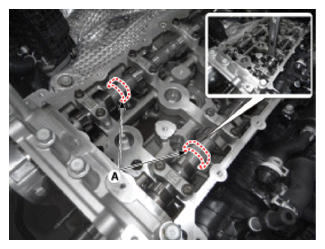

    G13538785Courtesy of HYUNDAI MOTOR AMERICA
  7. Install the high pressure fuel pump bracket (A).

    Tightening torque:

    18.6 - 23.5 N.m (1.9 - 2.4 kgf.m, 13.7 - 17.4 lb-ft)

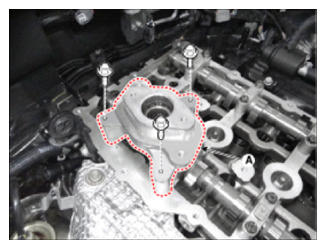

    G13538786Courtesy of HYUNDAI MOTOR AMERICA
  8. Install the timing chain cover.

    (Refer to Timing System - "TIMING CHAIN COVER ")

  9. Install the cylinder head cover.

    (Refer to Cylinder Head Assembly - "CYLINDER HEAD COVER ")

  10. Clean the E-CVVT motor plug mounting surface (A) with oil cleaner.
    G13538787Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:
    • If the surface is not cleaned, E-CVVT motor plug may be separated due to diminished separation force from residual oil.
    • When spraying oil cleaner, block around the motor shaft inlet and rotor gap with a clean towel to prevent inflow of oil from flowing into the rotor gap.
  11. When reusing the E-CVVT cover, inspect the below items.
    1. If there is sign of leakage from inside the E-CVVT cover, replace it with a new one.

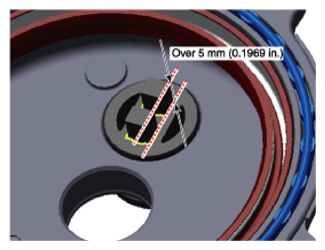

    2. Check for worn connector brush.

      Specification:  Over 5 mm (0.1969 in.)

      G13538788Courtesy of HYUNDAI MOTOR AMERICA

      If measurement is below specification, replace the E-CVVT cover with a new one.

    3. Check for damaged oil seal (A) and replace any damaged E-CVVT cover with a new one.
      G13538789Courtesy of HYUNDAI MOTOR AMERICA
    4. After inspecting E-CVVT, if no problem is found, replace the o-ring (A) with a new one.
      G13538790Courtesy of HYUNDAI MOTOR AMERICA
  12. Install the E-CVVT cover.
    1. Apply engine oil on oil seal lip (A).
      G13538791Courtesy of HYUNDAI MOTOR AMERICA
      NOTE:
      • When applying oil, keep the connector brush (A) clean from foreign materials.
      G13538792Courtesy of HYUNDAI MOTOR AMERICA
    2. Insert SST (09243-C2000) into the E-CVVT motor shaft.

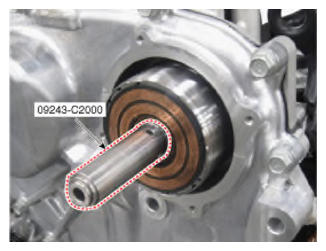

      G13538793Courtesy of HYUNDAI MOTOR AMERICA
      NOTE:
      • Correctly mount SST onto the motor shaft.
    3. Slowly push the E-CVVT cover (A) until it is flush with the timing chain cover surface.
      G13538794Courtesy of HYUNDAI MOTOR AMERICA
      NOTE:
      • Installing the E-CVVT cover without SST may cause oil leakage inside the E-CVVT motor due to damaged or separated E-CVVT oil seal.
    4. Pre-tighten the bolts in the below sequence, and then remove the SST (09243-C2000).

      Tightening torque:

      1.0 - 2.0 N.m (0.1 - 0.2 kgf.m, 0.7 - 1.4 lb-ft, 8.7 - 17.4 lb-ft)

      Fig 1: E-CVVT Cover Bolts Tightening Sequence

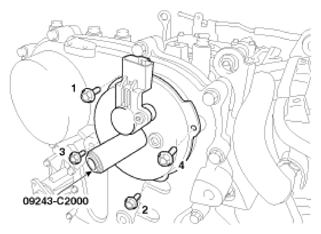

      G13538795Courtesy of HYUNDAI MOTOR AMERICA
    5. Tighten the bolts to the specified torque in the sequence below.

      Tightening torque:

      9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

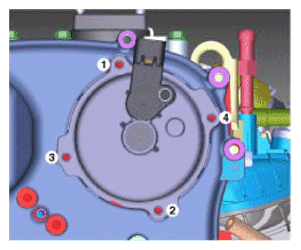

      Fig 2: E-CVVT Cover Bolts Tightening Sequence
      G13538796Courtesy of HYUNDAI MOTOR AMERICA
  13. Install the E-CVVT plug.

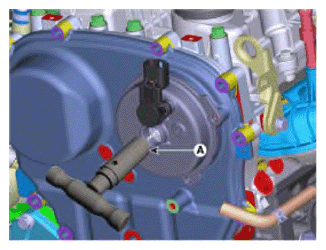

    1. By using SST (09243-C2000), insert the plug (A) into the E-CVVT cover hole.
      G13538797Courtesy of HYUNDAI MOTOR AMERICA
      NOTE:
      • Do not reuse a E-CVVT motor plug.

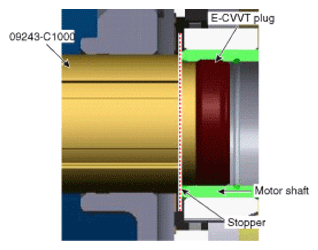

    2. Mount the stopper of SST so that it sits at the end of E-CVVT motor shaft.
      G13538798Courtesy of HYUNDAI MOTOR AMERICA
  14. Inspect the pressed depth of E-CVVT plug.

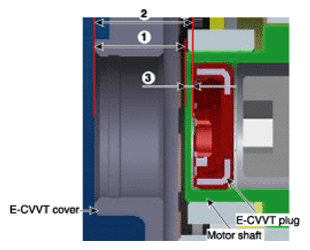

    1. By using a steel ruler, measure the distance from E-CVVT cover center boss to the end of motor shaft (1).
    2. By using a steel ruler, measure the distance from E-CVVT cover center boss to the end of E-CVVT plug (2).
      G13538799Courtesy of HYUNDAI MOTOR AMERICA
    3. Calculate the pressed depth (3) of motor plug.

      If out of specification, reinstall after replacing the E-CVVT plug with a new one.

      Pressed depth:  (3) = (2) - (1)

      Specification:  1.9 - 2.1 mm (0.0748 - 0.0827 in.)

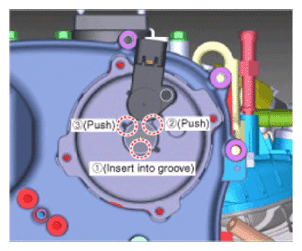

  15. Insert the E-CVVT cover plug so that the protrusion (A) reach to E-CVVT cover groove correctly.
    G13538800Courtesy of HYUNDAI MOTOR AMERICA
    G13538801Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:
    • Check how much protrude after installing the E-CVVT plug.
      G13538802Courtesy of HYUNDAI MOTOR AMERICA
    • Be careful that the plug is not inserted inside E-CVVT cover beyond the regulated range.
  16. Install the other parts in the reverse order of removal.
    NOTE:
    • When replacing and reinstalling the electronic E-CVVT assembly, make sure reset the value of learning using additional function menu of GDS diagnostic.

      (Refer to Engine Control/Fuel System - "E-CVVT MOTOR ")
