Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Release the residual pressure in fuel line.

    (Refer to Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")

  2. Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
  3. Remove the rear seat cushion.

    (Refer to Body - "REAR SEAT ASSEMBLY ")

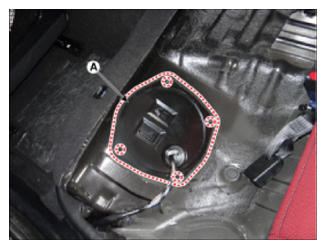

  4. Remove the fuel pump service cover (A) after loosening the mounting screws.
    G13539572Courtesy of HYUNDAI MOTOR AMERICA

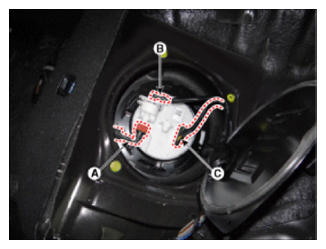

  5. Disconnect the fuel feed quick-connector (A).
  6. Disconnect the fuel pressure sensor connector (B).
  7. Disconnect the fuel pump connector (C).
    G13539573Courtesy of HYUNDAI MOTOR AMERICA

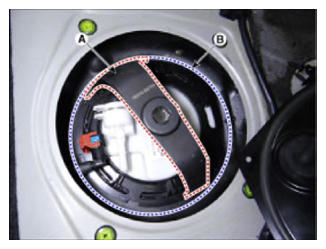

  8. Remove the locking ring (A) by using the special service tool (B) [No.: 09310-B8100].
    NOTE:
    • When removing the plate cover, be careful not to damage the fuel tank and fuel pump.
    • When removing the plate cover, press the upper area with hand and rotate the wrench counter clockwise.
    G13539574Courtesy of HYUNDAI MOTOR AMERICA
  9. Remove the fuel pump (A).
    G13539575Courtesy of HYUNDAI MOTOR AMERICA
