Repair Procedures: Removal
WARNING: This page is about a different variant/trim than selected.
- Release the residual pressure in fuel line.
(Refer to Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")
- Switch "OFF" the ignition and disconnect the negative (-) battery terminal.

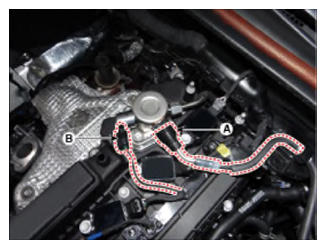

- Disconnect the fuel pressure control valve connector (B) and the fuel feed tube quick-connector (A).
- Remove the high pressure fuel pipe.
(Refer to Fuel Delivery System - "FUEL LINE ")

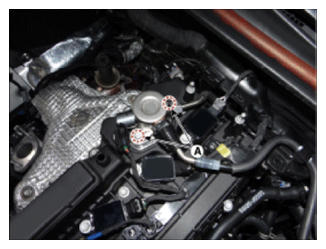

- Remove the installation bolts (A), and then remove the high pressure fuel pump from the cylinder head assembly.
