Low Pressure Fuel Line [Extension Fuel Line '<-> Fuel Tank]
WARNING: This page is about a different variant/trim than selected.
- Release the residual pressure in fuel line.
(Refer to Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")
- Switch "OFF" the ignition and disconnect the negative (-) battery terminal.

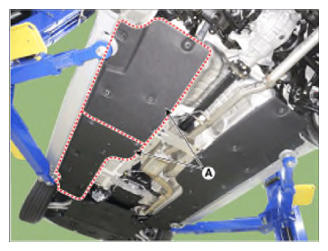

- Remove the side under cover (A).

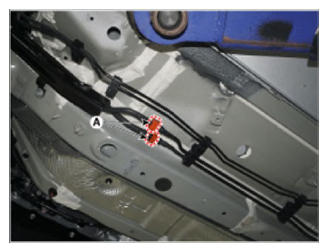

- Disconnect the front vapor and fuel tube line quick-connector (A).
- Remove the fuel tank.
(Refer to Fuel Delivery System - "FUEL TANK ")

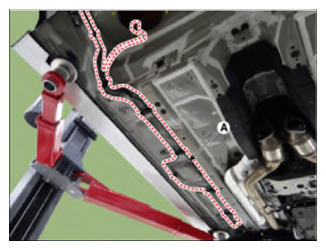

- Remove the vapor tube and fuel feed tube line fixing clips (A) by using a common driver.
