Low Pressure Fuel Line [Engine Room <-> Extension Fuel Line]
WARNING: This page is about a different variant/trim than selected.
- Release the residual pressure in fuel line.
(Refer to Fuel Delivery System - " RELEASE RESIDUAL PRESSURE IN FUEL LINE ")
- Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
- Remove the cowl top cover assembly.
(Refer to Body - "COWL TOP COVER ")

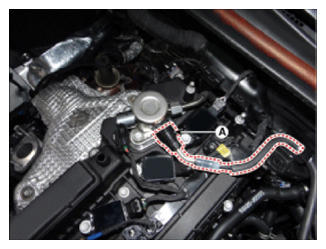

- Disconnect the fuel feed tube quick-connector (A) which is connected from the high pressure fuel pump.

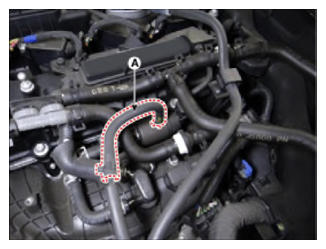

- Disconnect the vapor hose (A) which is connected from the PCSV.
- Remove the engine control module (ECM).
(Refer to Engine Control System - "ENGINE CONTROL MODULE (ECM) ")
- Lift the vehicle.
- Remove the front-left wheel & tire and wheel house cover.

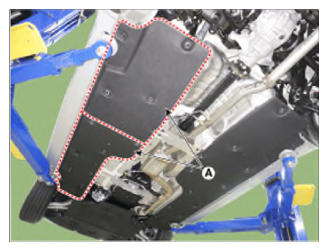

- Remove the side under cover (A).

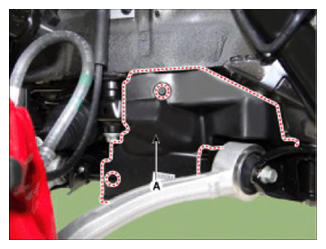

- Remove the side cover (A).

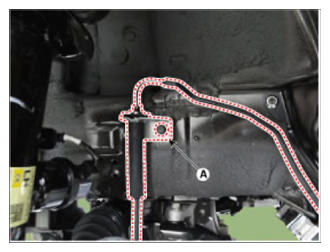

- Remove the brake line bracket (A) after removing mounting bolt.

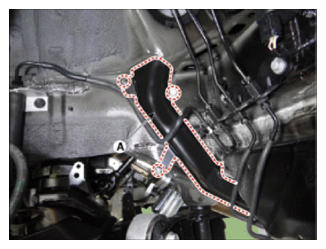

- Remove the fuel line protector (A) after removing mounting nuts.

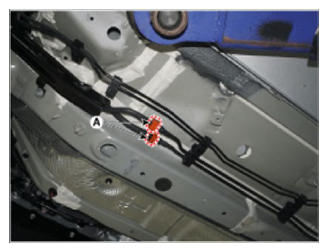

- Disconnect the front vapor and fuel tube line quick-connector (A).
- Down the vehicle.
- Remove the front vapor and fuel tube line.
