High Pressure Fuel Pipe [Extension Fuel Line '<-> Fuel Tank]

WARNING: This page is about a different variant/trim than selected.
  1. Release the residual pressure in fuel line.

    (Refer to Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")

  2. Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
  3. Remove the cowl top cover assembly.

    (Refer to Body - "COWL TOP COVER ")

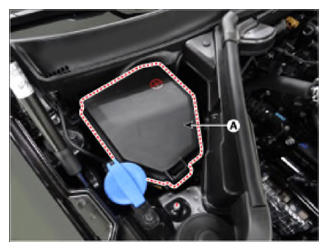

  4. Remove the engine box cover (A).
    G13539607Courtesy of HYUNDAI MOTOR AMERICA

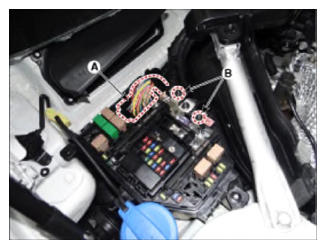

  5. Disconnect the front control connector (A).
  6. Remove the ground terminal nuts (B).
    G13539608Courtesy of HYUNDAI MOTOR AMERICA

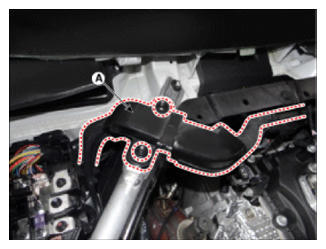

  7. Remove the wiring protector (A).
    G13539609Courtesy of HYUNDAI MOTOR AMERICA

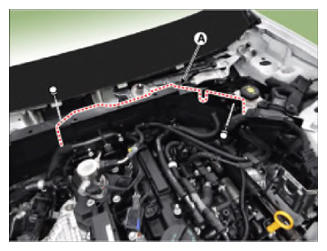

  8. Remove the engine room panel (A).
    G13539610Courtesy of HYUNDAI MOTOR AMERICA
  9. Remove the high pressure fuel pipe.

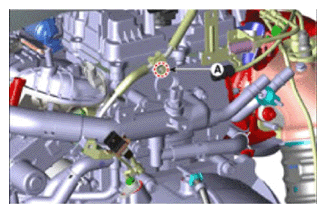

    1. Remove the high pressure fuel pipe mounting bolt (A).
      G13539611Courtesy of HYUNDAI MOTOR AMERICA

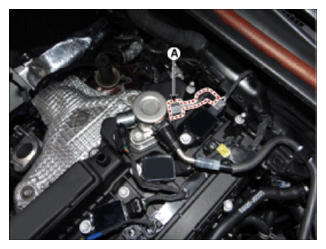

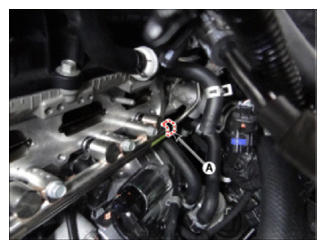

    2. Remove the high pressure fuel pipe flange nut (A).
      G13539612Courtesy of HYUNDAI MOTOR AMERICA
      G13539613Courtesy of HYUNDAI MOTOR AMERICA
