Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
  2. Remove the fuel filler cap after opening the fuel filler door.
  3. Lift the vehicle.
  4. Remove the rear-left wheel & tire and wheel house cover.

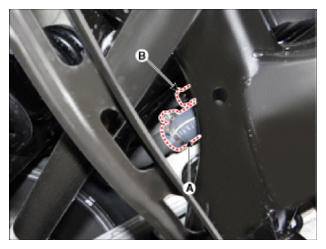

  5. Disconnect the fuel filler hose (A) and leveling hose (B).
    G13539614Courtesy of HYUNDAI MOTOR AMERICA
  6. Disconnect the ventilation (A).
    G13539615Courtesy of HYUNDAI MOTOR AMERICA

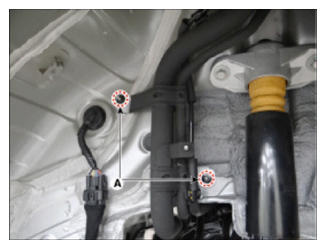

  7. Remove the filler-neck assembly from the vehicle after removing bracket mounting nuts (A).
    G13539616Courtesy of HYUNDAI MOTOR AMERICA
