Removal And Installation

WARNING: This page is about a different variant/trim than selected.

Disconnect the battery negative terminal.
Remove the engine cover.
(Refer to Engine and Transmission Assembly - "ENGINE COVER ")
Remove the engine room under cover.
(Refer to Engine and Transmission Assembly - "ENGINE ROOM UNDER COVER ")
Drain the coolant.
(Refer to Cooling System - "COOLANT ")

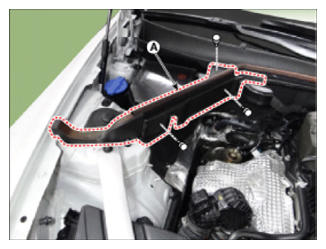

Remove the RH rear strut bar cover (A).

Courtesy of HYUNDAI MOTOR AMERICA

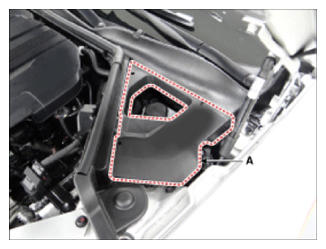

Remove the engine control module (ECM) cover (A).

Courtesy of HYUNDAI MOTOR AMERICA

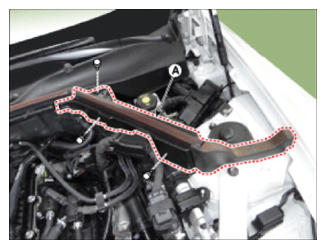

Remove the LH rear strut bar cover (A).

Courtesy of HYUNDAI MOTOR AMERICA

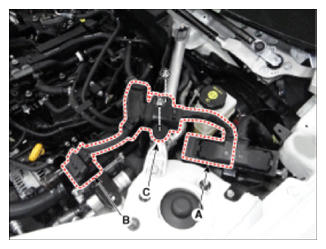

Disconnect the wiring connector and harness from the engine room.
1. Disconnect the engine control module (ECM) connector (A).
2. Disconnect the transmission control module (TCM) connector (B).
3. Disconnect the wiring protector (C).
  Tightening torque:

  4.9 - 7.8 N.m (0.5 - 0.8 kgf.m, 3.6 - 5.8 lb-ft)
Courtesy of HYUNDAI MOTOR AMERICA
Remove the cowl top cover.
(Refer to Body (Interior and Exterior) - "COWL TOP COVER ")

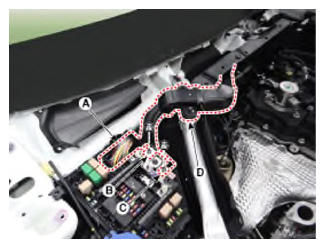

Disconnect the wiring connector and harness from the engine room.
1. Disconnect the front control connector (A).
2. Disconnect the starter motor ground cable (B).
3. Disconnect the alternator ground cable (C).
4. Disconnect the wiring protector (D).
  Tightening torque

  Bolt: 7.8 - 9.8 N.m (0.8 - 1.0 kgf.m, 5.8 - 7.2 lb-ft)

  Nut: 4.9 - 7.8 N.m (0.5 - 0.8 kgf.m, 3.6 - 5.8 lb-ft)
Courtesy of HYUNDAI MOTOR AMERICA

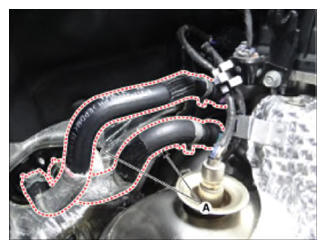

Disconnect the heater hoses (A).

Courtesy of HYUNDAI MOTOR AMERICA

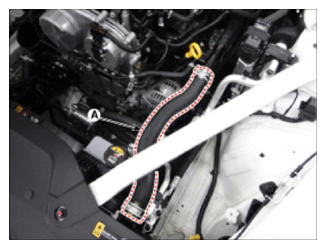

Disconnect the radiator upper hose (A).

Courtesy of HYUNDAI MOTOR AMERICA

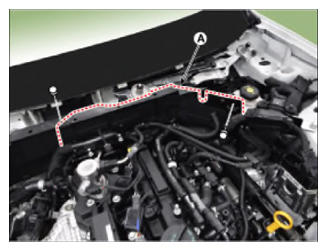

Remove the engine room bulkhead (A).

Courtesy of HYUNDAI MOTOR AMERICA

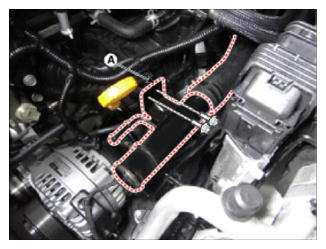

Remove the water outlet pipe (A).
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

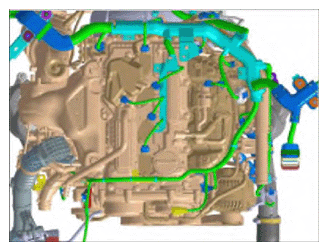

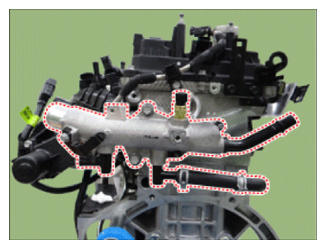

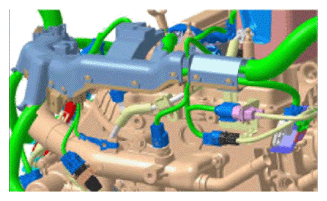

Disconnect the wiring connectors and harness clamps and remove the wiring protector around the water temperature control assembly.

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA

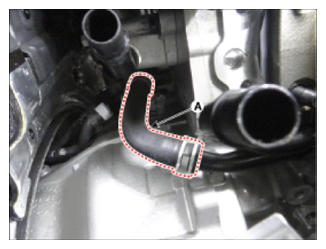

Disconnect the bypass hose (A).

Courtesy of HYUNDAI MOTOR AMERICA

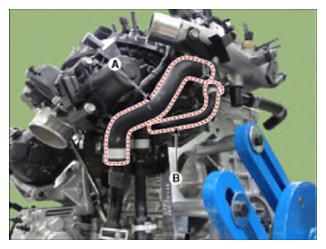

Disconnect the oil cooler hose (A) and electric throttle body control (ETC) module water hose (B).

Courtesy of HYUNDAI MOTOR AMERICA

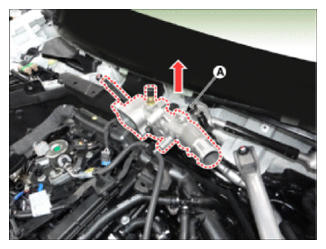

Remove the water temperature control assembly (A) with gasket.
Tightening torque:

Bolts:

14.7 - 19.6 N.m (1.5 - 2.0 kgf.m, 10.8 - 14.5 lb-ft)

Nuts:

19.6 - 23.5 N.m (2.0 - 2.4 kgf.m, 14.5 - 17.4 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
- Always use a new water temperature control assembly gasket.
Install in the reverse order of removal.
Fill the radiator with coolant.
(Refer to Cooling system - "COOLANT ")
Start engine and check for leaks.
Recheck the coolant level.
