Removal And Installation
WARNING: This page is about a different variant/trim than selected.

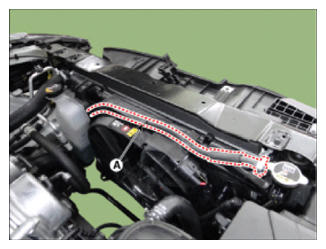

- Disconnect the over flow hose (A).
 Courtesy of HYUNDAI MOTOR AMERICA
|

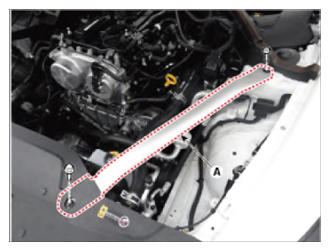

- Remove the LH front strut bar (A).
 Courtesy of HYUNDAI MOTOR AMERICA
|

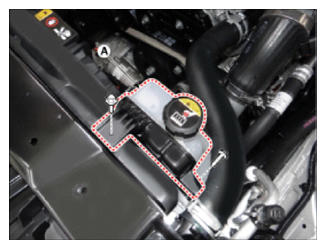

- Remove the reservoir tank (A).
Tightening torque:
4.9 - 8.3 N.m (0.50 - 0.85 kgf.m, 3.6 - 6.1 lb-ft)
 Courtesy of HYUNDAI MOTOR AMERICA
|
- Install in the reverse order of removal.
