Cooling Fan Assembly

WARNING: This page is about a different variant/trim than selected.

Disconnect the battery negative terminal.

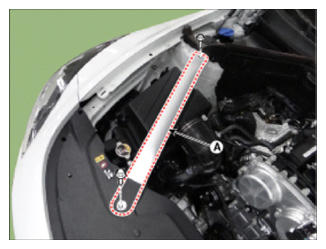

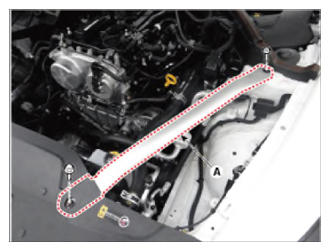

Remove the front strut bar (A).
[RH]

Courtesy of HYUNDAI MOTOR AMERICA

[LH]

Courtesy of HYUNDAI MOTOR AMERICA
Remove the engine room cover.
(Refer to Engine and Transmission Assembly - "ENGINE COVER ")

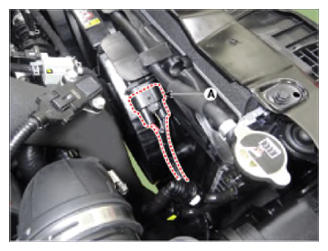

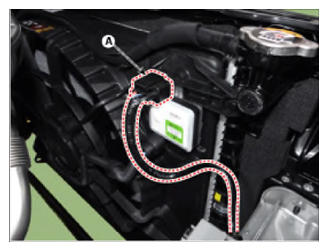

Disconnect the wire harness connector (A).
[BLDC (Brushless DC) motor type]

Courtesy of HYUNDAI MOTOR AMERICA

[DC motor type]

Courtesy of HYUNDAI MOTOR AMERICA

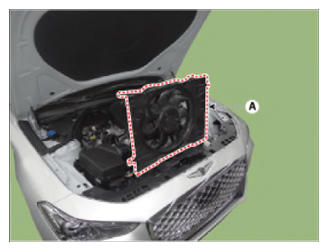

Remove the cooling fan assembly (A).
Tightening torque:

4.9 - 7.8 N.m (0.5 - 0.8 kgf.m, 3.6 - 5.8 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
Install in the reverse order of removal.
