Description & Operation: Description: Specifications

WARNING: This page is about a different variant/trim than selected.
Items Specifications
Operating temperature -22 - 185°F (-30 - 85°C)
Operating voltage DC 9-16V
Rated voltage DC 12V
Rated current (No load) 300 mA or less

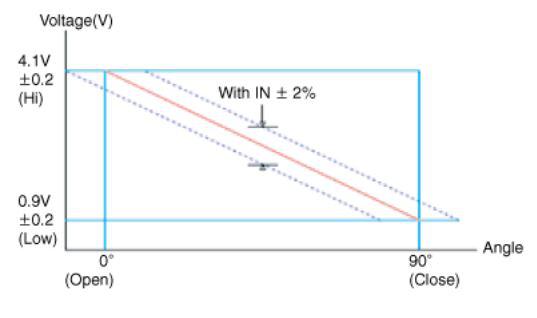

G13538933Courtesy of HYUNDAI MOTOR AMERICA
