Transmission Mounting Assembly (AWD)
WARNING: This page is about a different variant/trim than selected.
- Remove the engine room under cover.
(Refer to Engine and Transmission Assembly - "ENGINE ROOM UNDER COVER ")

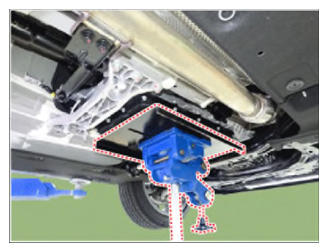

- Install the jack under the transmission to support the transmission.NOTE:
- Put the rubber block between the jack and transmission to avoid damaging the transmission.

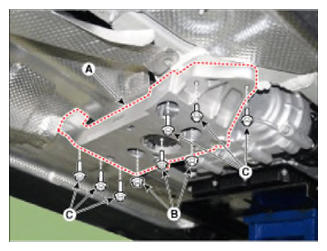

- Remove the transmission mounting assembly (A).
Tightening torque
Bolt, Nuts (B):
49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.2 - 47.0 lb-ft)
Bolts (C):
58.8 - 73.5 N.m (6.0 - 7.5 kgf.m, 43.4 - 54.2 lb-ft)
- Install in the reverse order of removal.
