Transmission Mounting Assembly (2WD)

WARNING: This page is about a different variant/trim than selected.

Remove the engine room under cover.
(Refer to Engine and Transmission Assembly - "ENGINE ROOM UNDER COVER ")

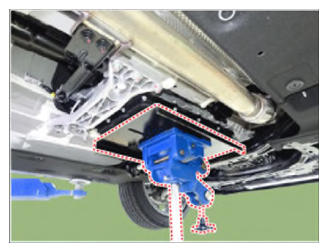

Install the jack under the transmission to support the transmission.

Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
- Put the rubber block between the jack and transmission to avoid damaging the transmission.

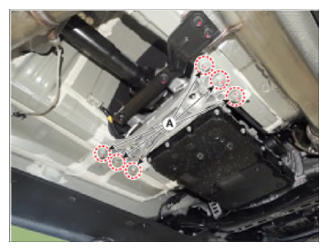

Remove the transmission mounting assembly bolts (A).
Tightening torque:

58.8 - 73.5 N.m (6.0 - 7.5 kgf.m, 43.4 - 54.2 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

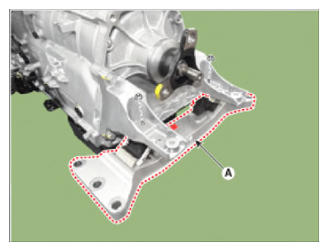

Remove the transmission mounting assembly (A).
Tightening torque:

24.4 - 34.3 N.m (3.0 - 3.5 kgf.m, 21.7 - 25.3 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
Install in the reverse order of removal.
