Components & Components Location: Components

WARNING: This page is about a different variant/trim than selected.

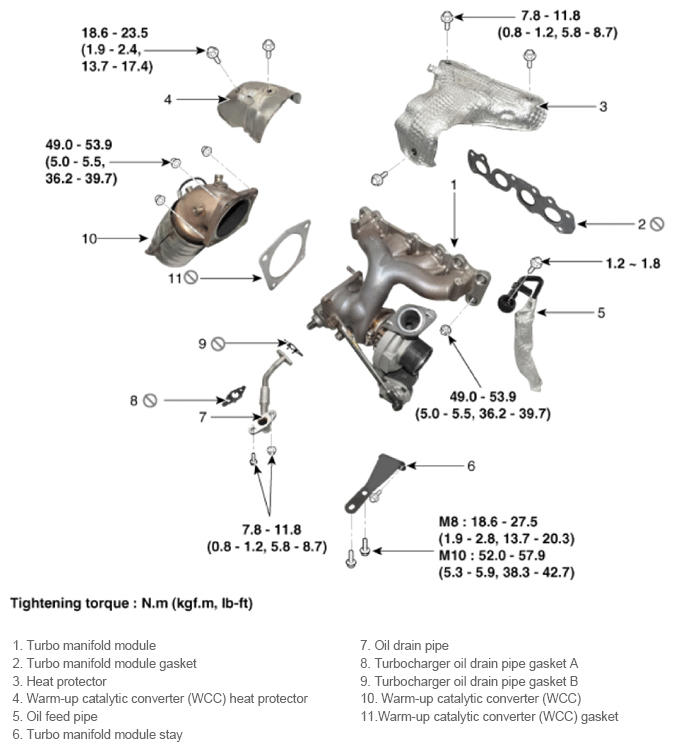

Fig 1: Turbocharger, Exhaust Manifold And Catalytic Converter Components Location With Torque Specification
G13539038Courtesy of HYUNDAI MOTOR AMERICA
