Front Muffler

WARNING: This page is about a different variant/trim than selected.

Remove the engine room under cover.
(Refer to Engine and Transmission Assembly - "ENGINE ROOM UNDER COVER ")

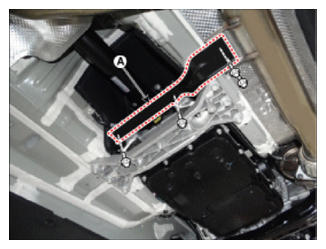

Remove the front muffler bracket (A).
Tightening torque:

29.4 - 39.2 N.m (3.0 - 4.0 kgf.m, 21.7 - 28.9 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

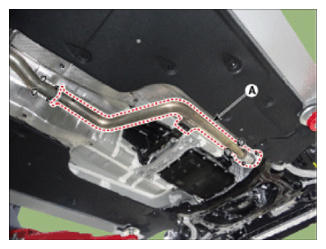

Remove the front muffler (A).
Tightening torque:

39.2 - 58.8 N.m (4.0 - 6.0 kgf.m, 28.9 - 43.4 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
- When installing, replace with new gaskets.
Install in the reverse order of removal.
