Intercooler Inlet Hose and Pipe

WARNING: This page is about a different variant/trim than selected.

Remove the air intake hose.
(Refer to Intake and Exhaust System - "AIR CLEANER ")

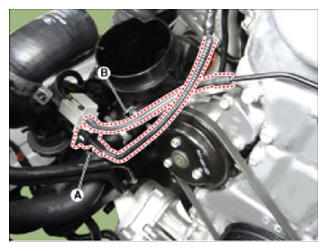

Disconnect the recirculation valve connector (A) and the vacuum hose (B).

Courtesy of HYUNDAI MOTOR AMERICA

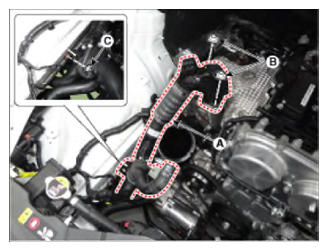

Remove the intercooler inlet hose and pipe (A).
Tightening torque

Nuts (B): 14.7 - 19.6 N.m (1.5 - 2.0 kgf.m, 10.8 - 14.5 lb-ft)

Nut (C): 14.7 - 19.6 N.m (1.5 - 2.0 kgf.m, 10.8 - 14.5 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
Remove the engine room under cover.
(Refer to Engine and Transmission Assembly - "ENGINE ROOM UNDER COVER ")

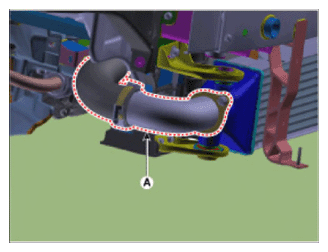

Remove the intercooler inlet hose and pipe (A).
Tightening torque:

21.6 - 26.5 N.m (2.2 - 2.7 kgf.m, 15.9 - 19.5 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
- When installing the intercooler pipe, align the pipe with the O-ring's groove.
- When installing the intercooler pipe, install a new O-ring.
Install in the reverse order of removal.
