Air Cleaner Element

WARNING: This page is about a different variant/trim than selected.

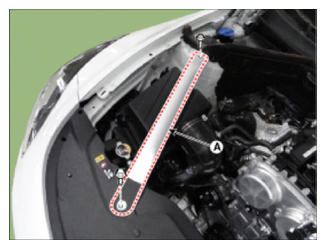

  1. Remove the RH front strut bar (A).
    G13539007Courtesy of HYUNDAI MOTOR AMERICA

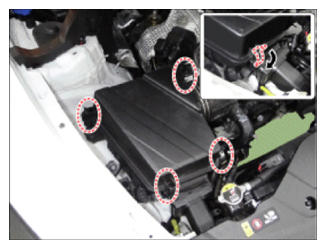

  2. Open the air cleaner element cover by unlocking the clamp.
    G13539008Courtesy of HYUNDAI MOTOR AMERICA

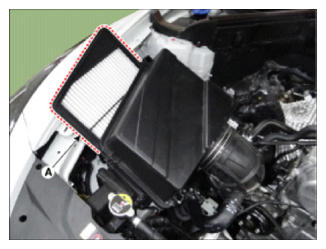

  3. Replace the air cleaner element (A) with a new one.
    G13539009Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:
    • If there are foreign substances inside the air cleaner assembly, wipe the inside of the air cleaner assembly and then replace the air cleaner element.
  4. Close the air cleaner cover by hooking the clamps.
