Control Circuit Inspection
WARNING: This page is about a different variant/trim than selected.
- Turn "OFF" the ignition switch.
- Disconnect OCV (Exhaust) connector.
- Turn "ON" the ignition switch.
- Measure voltage between control terminal of the OCV (Exhaust) harness connector and chassis ground.

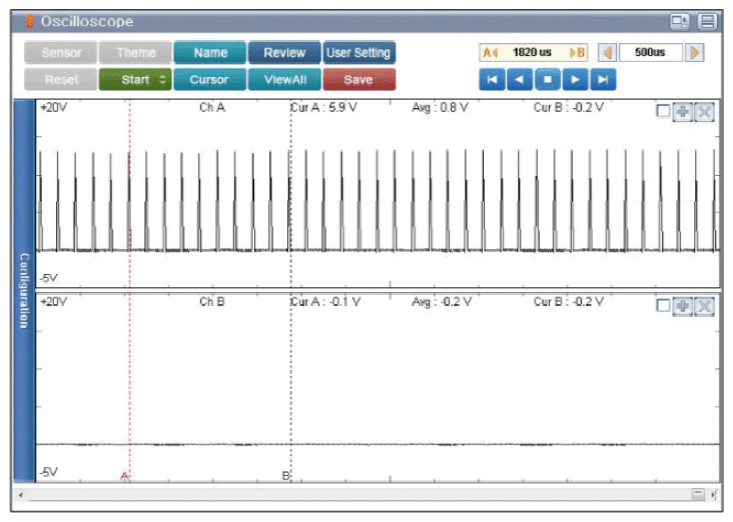

Specification: Approx. 2.2V
- Is voltage within specification?
YES
- Go to "COMPONENT INSPECTION " as follows.
NO
- Repair short to battery in control circuit and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
