GDS Data Analysis
WARNING: This page is about a different variant/trim than selected.
- Connect GDS and select "DTC Analysis" mode.
- Start the engine.

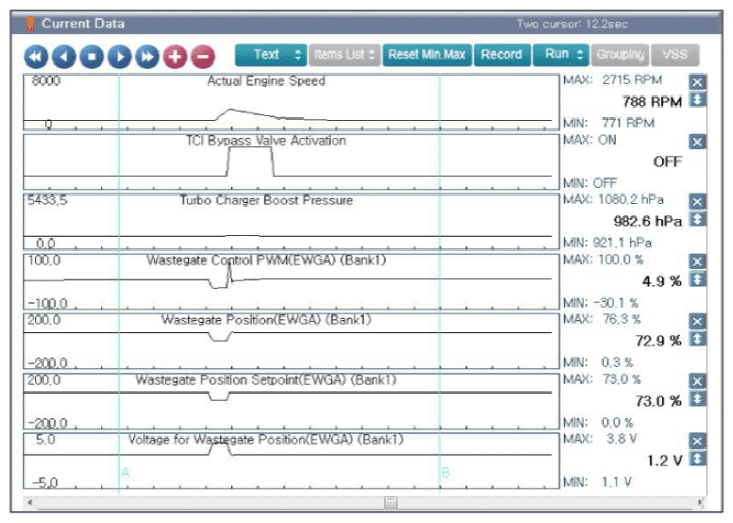

- Monitor the parameters relegated to DTC on the "Current Data" menu of the GDS as below.
- Is parameter displayed within specifications?
YES
- This can be an intermittent fault caused by poor contact of the sensor and/or ECM connector. Or, ECM memory was not cleared after repair. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace the relevant component(s) as necessary, and go to "VERIFICATION OF VEHICLE REPAIR ".
NO
- Go to next step below.
