Signal Waveform & Data

WARNING: This page is about a different variant/trim than selected.

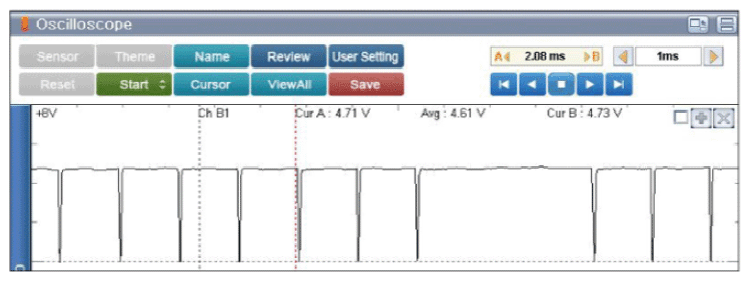

G13544614Courtesy of HYUNDAI MOTOR AMERICA
G13544615Courtesy of HYUNDAI MOTOR AMERICA

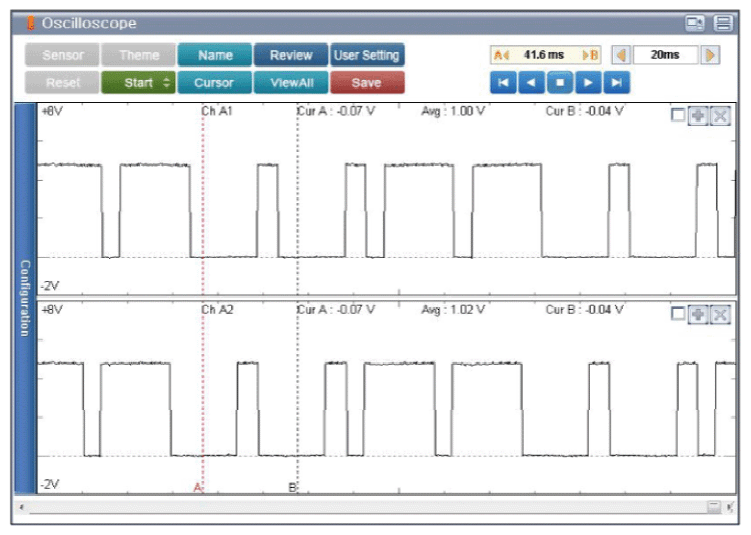

Normal waveform of Crankshaft Position Sensor and Cam Position Sensor at idle

G13544616Courtesy of HYUNDAI MOTOR AMERICA

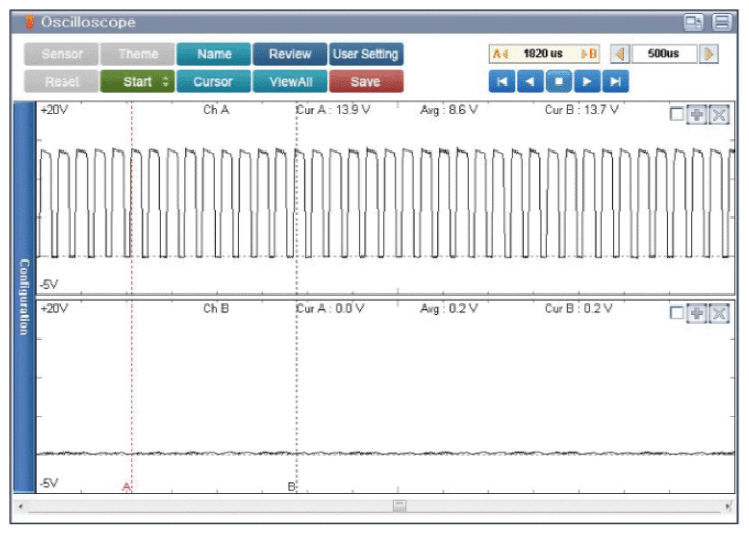

Normal waveform of e-CVVT motor control terminal at acceleration.
