e-CVVT Learning Value Erasing

WARNING: This page is about a different variant/trim than selected.
  1. Connect GDS to DLC connector.
  2. Turn "ON" the ignition switch.

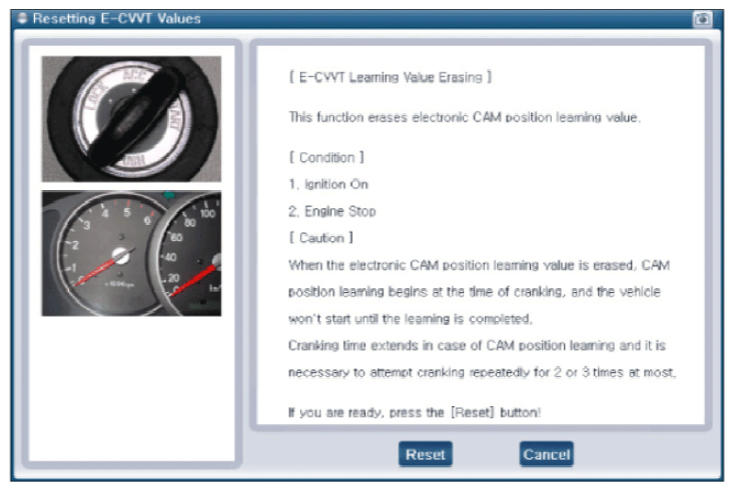

  3. Perform "e-CVVT Learning Value Erasing" in Vehicle S/W Management menu on GDS. (Fig.1)
    NOTE: When the learned value for electronic cam position is erased, start learning the cam position while cranking. When it is completed, engine is started.
    Cranking should be repeated for maximum 2 to 3 for learning.
    G13544617Courtesy of HYUNDAI MOTOR AMERICA
