Repair Procedures: Removal
WARNING: This page is about a different variant/trim than selected.
- Remove the front seat assembly.
(Refer to Front Seat - "FRONT SEAT ASSEMBLY ")

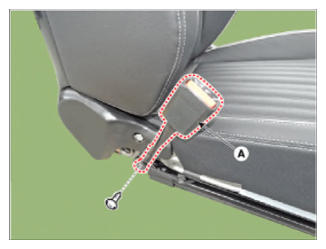

- Remove the front seat belt buckle (A) after loosening the mounting bolt.
Tightening torque:
39.2 - 53.9 N.m (4.0 - 5.5 kgf.m, 28.9 - 39.8 lb-ft)
