Section 3 (Idle Stop & Go (ISG) System - 2.0L)
>>
DC/DC Converter
>>
Schematic Diagrams
>>
Circuit Diagram
Circuit Diagram
WARNING:
This page is about a different variant/trim than selected.

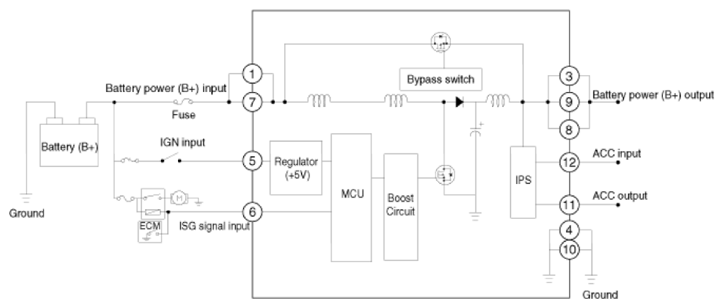

[200W]
Courtesy of HYUNDAI MOTOR AMERICA

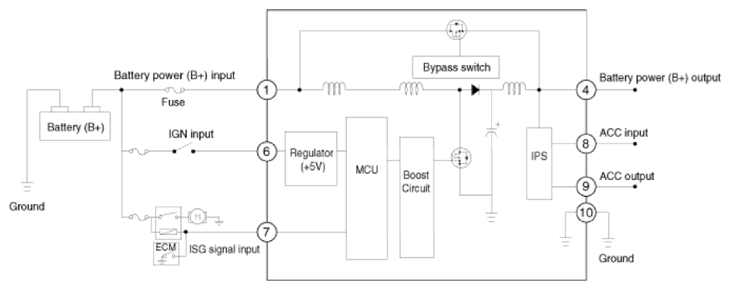

[400W]
Courtesy of HYUNDAI MOTOR AMERICA
