Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.

[200W]

  1. Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
  2. Remove the glove box housing.

    (Refer to Body (Interior and Exterior) - "GLOVE BOX HOUSING ")

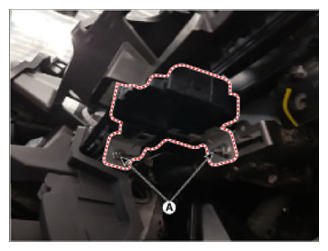

  3. Remove the DC/DC converter after loosening the mounting nuts (A).
    G13539516Courtesy of HYUNDAI MOTOR AMERICA
  4. Disconnect the DC/DC converter connector.

[400W]

  1. Switch "OFF" the ignition and disconnect the negative (-) battery terminal.

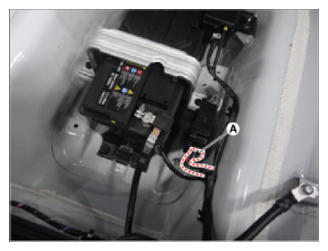

  2. Disconnect the DC/DC converter connector (A).
    G13539517Courtesy of HYUNDAI MOTOR AMERICA

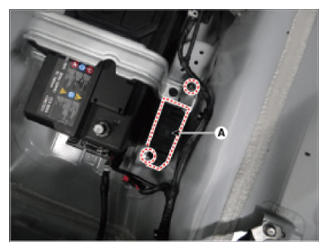

  3. Remove the DC/DC converter (A) after loosening the mounting nuts.
    G13539518Courtesy of HYUNDAI MOTOR AMERICA
