Components Location

WARNING: This page is about a different variant/trim than selected.

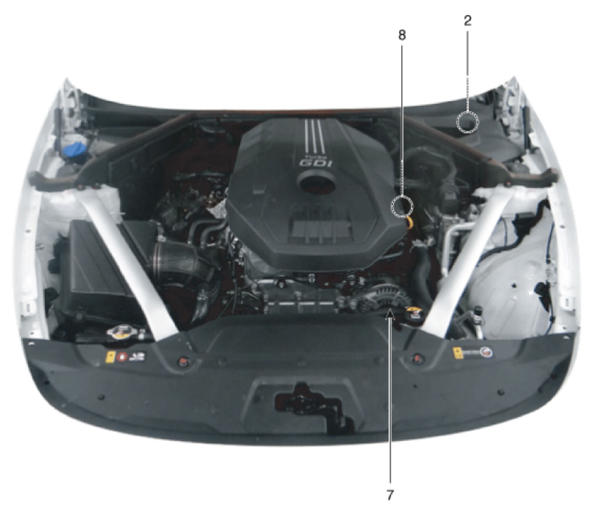

G13539485Courtesy of HYUNDAI MOTOR AMERICA

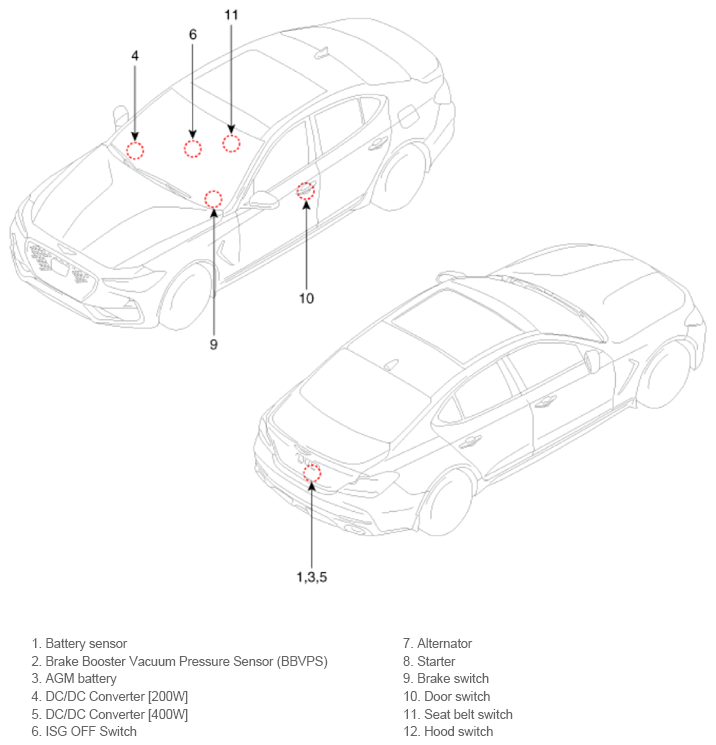

G13539486Courtesy of HYUNDAI MOTOR AMERICA
G13539487Courtesy of HYUNDAI MOTOR AMERICA

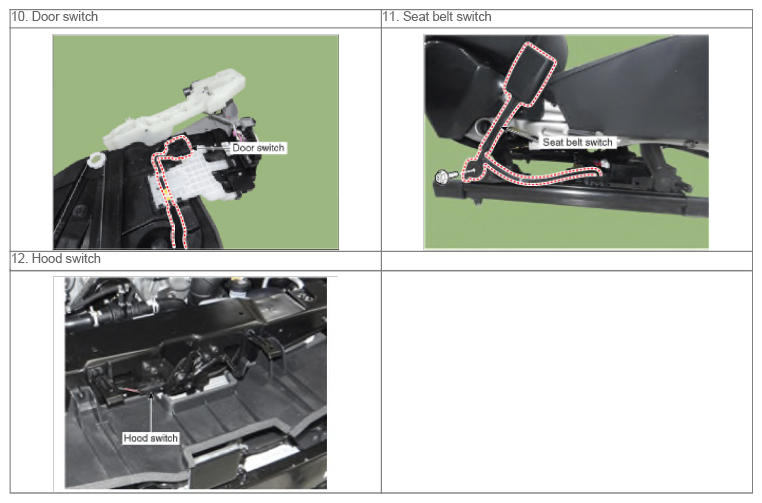

G13539488Courtesy of HYUNDAI MOTOR AMERICA
