Creation condition and calibration method

WARNING: This page is about a different variant/trim than selected.
  1. In case of replacing the transfer case (Coupling) assembly only.

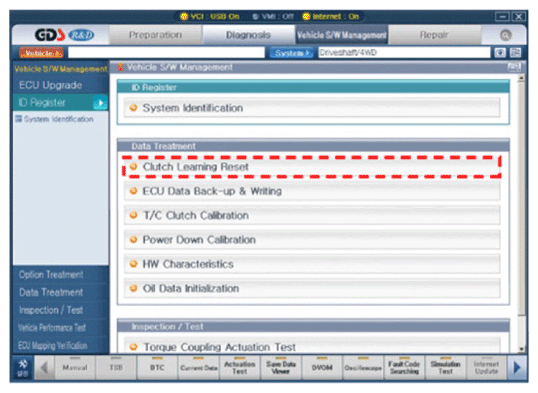

    G13540134Courtesy of HYUNDAI MOTOR AMERICA

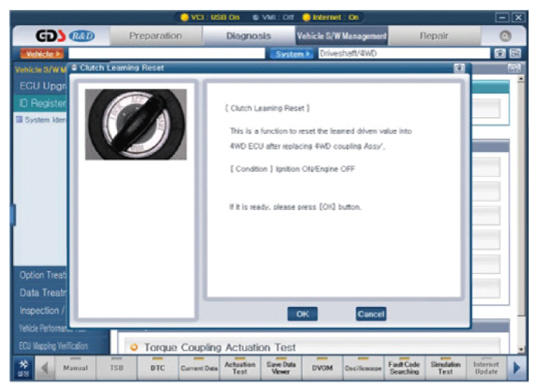

    G13540135Courtesy of HYUNDAI MOTOR AMERICA
  2. In case of replacing the ITA (ECU) only

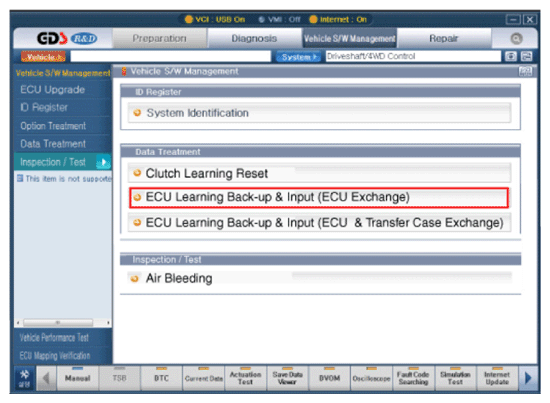

    G13540136Courtesy of HYUNDAI MOTOR AMERICA

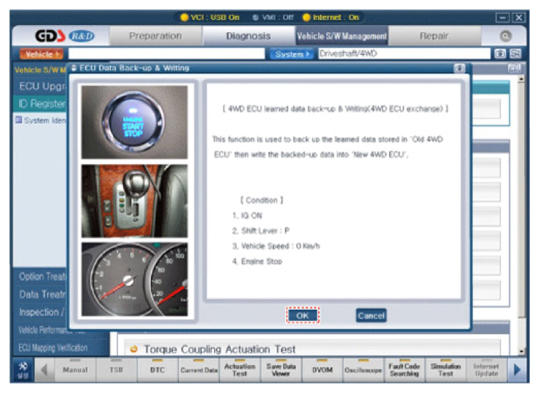

    G13540137Courtesy of HYUNDAI MOTOR AMERICA

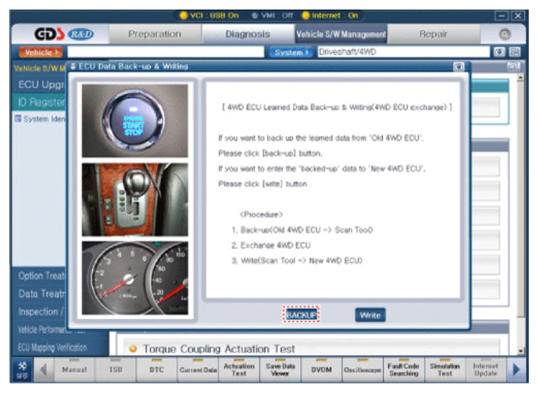

    G13540138Courtesy of HYUNDAI MOTOR AMERICA
  3. In case of replacing the transfer case and ITA (ECU)

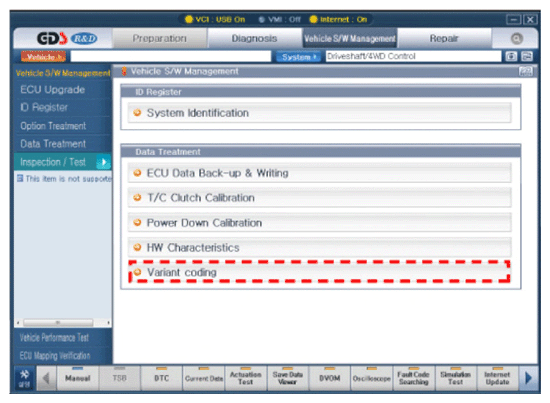

    G13540139Courtesy of HYUNDAI MOTOR AMERICA

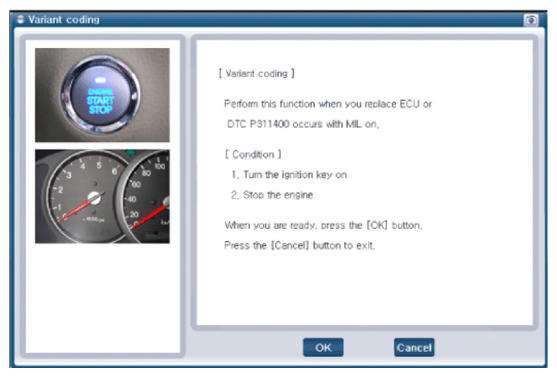

    G13540140Courtesy of HYUNDAI MOTOR AMERICA

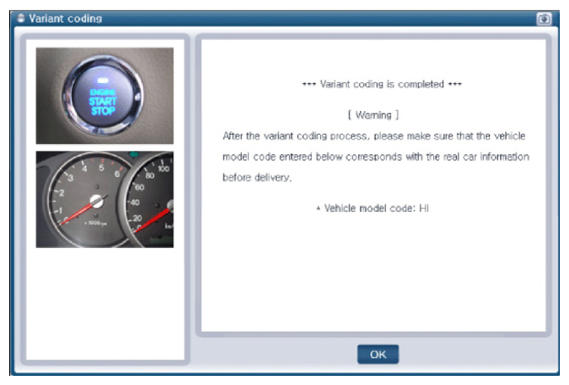

    G13540141Courtesy of HYUNDAI MOTOR AMERICA
  4. Perform the following procedure in case of the appearance of failure code (P182900, P183600).

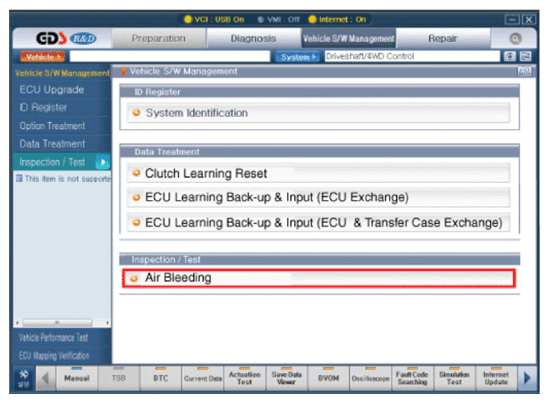

    G13540142Courtesy of HYUNDAI MOTOR AMERICA

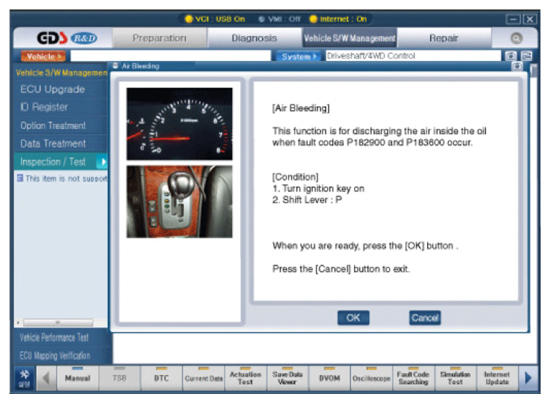

    G13540143Courtesy of HYUNDAI MOTOR AMERICA
