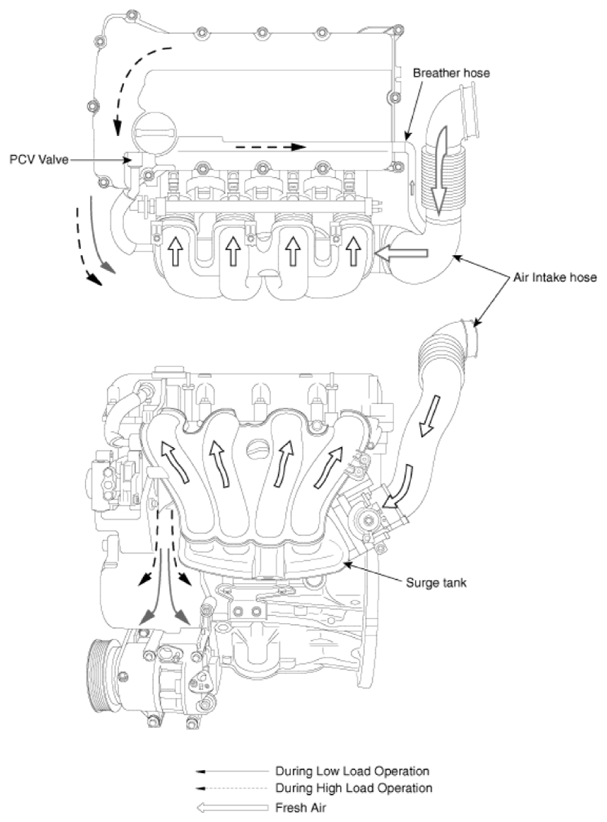

Schematic Diagram

WARNING: This page is about a different variant/trim than selected.

G13539244

Courtesy of HYUNDAI MOTOR AMERICA
