Test for changing position of each ignition coil

WARNING: This page is about a different variant/trim than selected.
  1. Ignition coil w/misfire code
  2. Ignition coil w/o misfire code
NOTE:
  • Do not move with spark plug at the same time (move the ignition coil only)
G00598693Courtesy of HYUNDAI MOTOR AMERICA

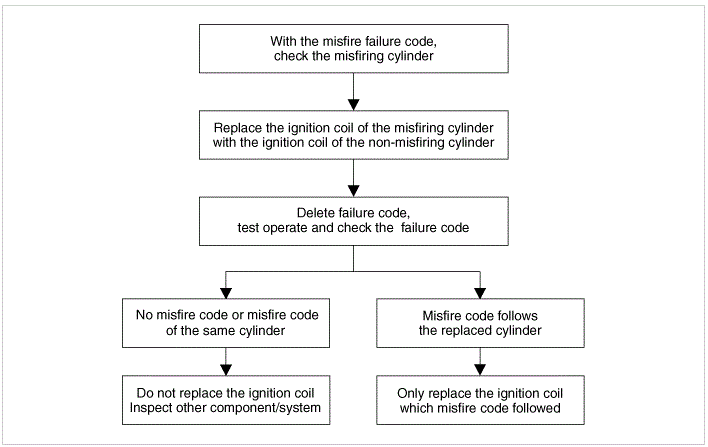

G00598694Courtesy of HYUNDAI MOTOR AMERICA
