Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
  2. Remove the engine cover.

    (Refer to Engine Mechanical System - "ENGINE COVER ")

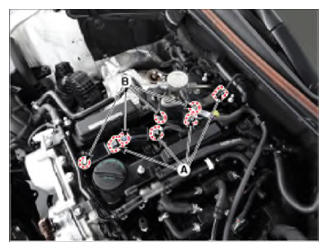

  3. Disconnect the ignition coil connector (A).
  4. Remove the ignition coil after loosening the mounting bolt (B).
G13539184Courtesy of HYUNDAI MOTOR AMERICA
