Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the engine room under cover.

    (Refer to Engine and Transmission Assembly - "ENGINE ROOM UNDER COVER ")

  2. For release the tension, turn the drive belt tensioner (A) clockwise then remove the drive belt (B).

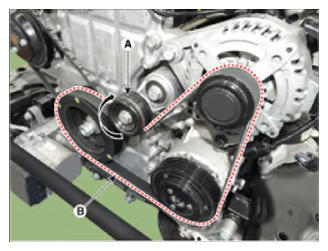

    G13538692Courtesy of HYUNDAI MOTOR AMERICA
  3. Remove the water pump belt.
    1. Insert the SST (09252-C1000) between the water pump pulley and the water pump belt.
    2. Remove the water pump belt (A) by turning the damper pulley clockwise.

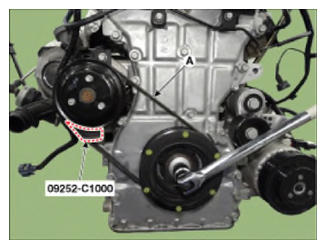

      G13538693Courtesy of HYUNDAI MOTOR AMERICA
