Removal and Installation
WARNING: This page is about a different variant/trim than selected.
- Remove the drive belt.
(Refer to Timing System - "DRIVE BELT ")

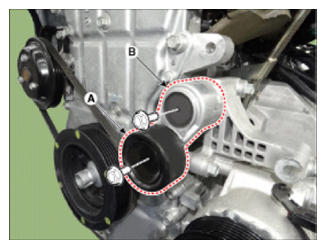

- Remove the drive belt tensioner pulley (A).
Tightening torque:
53.9 - 63.7 N.m (5.5 - 6.5 kgf.m, 39.8 - 47.0 lb-ft)
Information
- Tensioner pulley bolt is left-hands screw.
- Remove the drive belt tensioner (B).
Tightening torque:
53.9 - 63.7 N.m (5.5 - 6.5 kgf.m, 39.8 - 47.0 lb-ft)
- Install in the reverse order of removal.
