Repair Procedures: Installation

WARNING: This page is about a different variant/trim than selected.

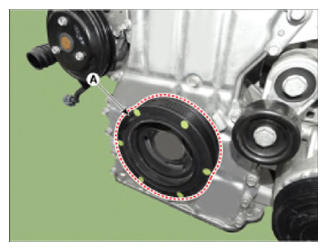

Install the crankshaft damper pulley (A).
Tightening torque:

[46.1 - 51.9 N.m (4.7 - 5.3 kgf.m, 33.9 - 38.3 lb-ft)] + [78 - 82°]

Courtesy of HYUNDAI MOTOR AMERICA

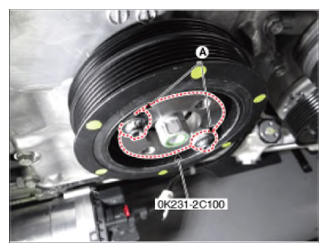

Install the SST (0K231-2C100) on the crankshaft damper pulley, and then tighten the bolts (A).

Courtesy of HYUNDAI MOTOR AMERICA

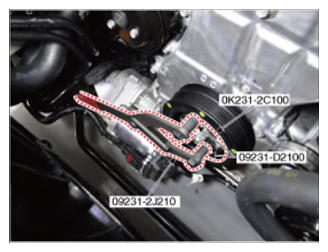

Install the SSTs (09231-2J210, 09231-D2100) on the SST (0K231-2C100) and then tighten the crankshaft damper pulley mounting bolt.

Courtesy of HYUNDAI MOTOR AMERICA

Information

Inset a adapter 5 mm (0.1969 in.) + 20 mm (0.7874 in.) of SST (09231-D2100) between SST (09231-2J210) and SST (0K231-2C100).

And then tighten bolts 45 mm (1.7717 in.) of SST (09231-D2100)

Courtesy of HYUNDAI MOTOR AMERICA

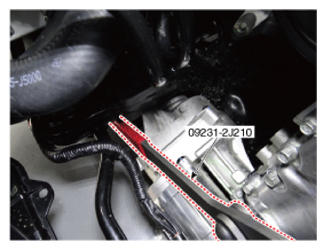

When tighten the crankshaft damper pulley mounting bolt, fix the SST 09231-2J210 on the sub frame.

Courtesy of HYUNDAI MOTOR AMERICA

Remove the SSTs (09231-2J210, 09231-D2100, 0K231-2C100) from the crankshaft damper pulley.
Install the water pump belt and drive belt.
(Refer to Timing System - "DRIVE BELT ")
Install the engine room under cover.
(Refer to Engine and Transmission Assembly - "ENGINE ROOM UNDER COVER ")
