[Transmission oil]
WARNING: This page is about a different variant/trim than selected.
- Raise the vehicle, and make sure it is securely supported.

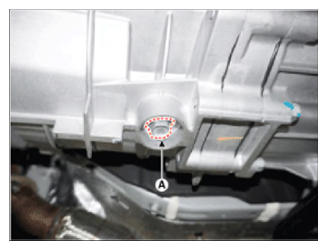

- Loosen the drain plug (A) and then drain the oil.
- Install the drain plug with new gasket.
Tightening torque :
58.9 - 78.5 N.m (6.0 - 8.0 kgf.m, 43.4 - 57.8 lb-ft)

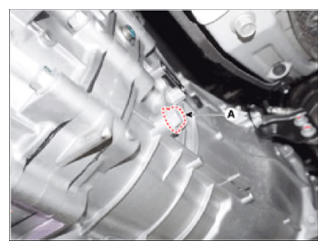

- Add specified oil through the filler plug hole after loosening the oil filler plug (A).
Standard oil : Standard oil: SAE 75W/85, API GL-4
Oil capacity : 1.9 L ± 0.1 L (0.50 ± 0.02 U.S.gal., 2.0 ± 0.11 U.S.qt., 1.67 ± 0.09lmp.qt.)
- Install the filler plug with new gasket.
Tightening torque :
58.9 - 78.5 N.m (6.0 - 8.0 kgf.m, 43.4 - 57.8 lb-ft)
