Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.

Remove the engine room under cover and side cover.
(Refer to Engine and Transmission Assembly - "ENGINE ROOM UNDER COVER ")
Drain the engine oil.
(Refer to Lubrication System - "ENGINE OIL ")

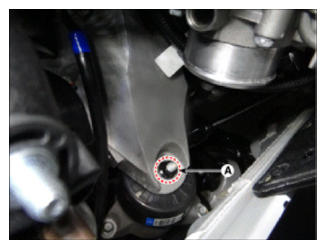

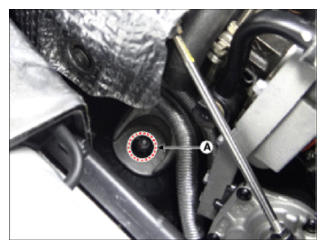

Remove the engine mounting support bracket nut (A).
Tightening torque:

63.7 - 83.4 N.m (6.5 - 8.5 kgf.m, 47.0 - 61.5 lb.ft)

[LH]

Courtesy of HYUNDAI MOTOR AMERICA

[RH]

Courtesy of HYUNDAI MOTOR AMERICA

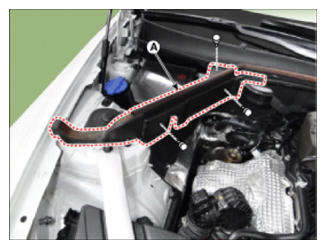

Remove the RH rear strut bar cover (A).

Courtesy of HYUNDAI MOTOR AMERICA

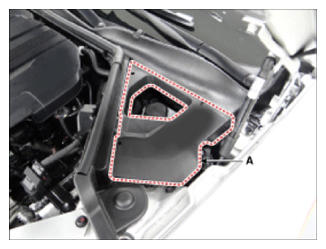

Remove the engine control module (ECM) cover (A).

Courtesy of HYUNDAI MOTOR AMERICA
Remove the LH rear strut bar cover (A).

Courtesy of HYUNDAI MOTOR AMERICA
Remove the cowl top cover.
(Refer to Body (Interior and Exterior) - "COWL TOP COVER ")
Remove the hood assembly
(Refer to Body (Interior and Exterior) - "HOOD ASSEMBLY ")
Assemble the engine support fixture on the engine room.
(Refer to Suspension System - "SUB FRAME ")
Turn the handle clockwise and then lift up the engine.

Remove the oil pan

Remove the oil pan mounting bolts.

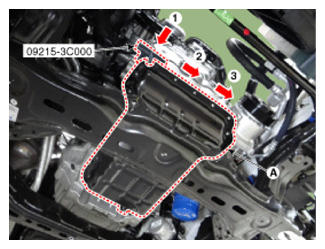

Remove the oil pan (A). Insert the blade of SST (09215-3C000) between the ladder frame and oil pan. Cut off applied sealer and remove the lower oil pan.

Courtesy of HYUNDAI MOTOR AMERICA

NOTE:

Be careful not to damage the contact surfaces of ladder frame.

Information

Insert the SST between the oil pan and the ladder frame by tapping it with a plastic hammer in the direction of (1) arrow.
After tapping the SST with a plastic hammer along the direction of (2) arrow around more than 2/3 edge of the oil pan, remove it from the ladder frame.
Do not turn over the SST abruptly without tapping. It be result in damage of the SST.
