Install the oil pan.

Using a gasket scraper, remove all the old sealant material from the gasket surfaces.

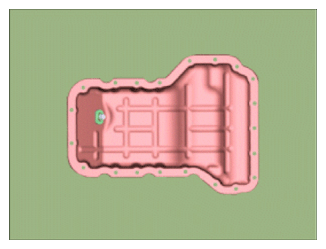

Before assembling the oil pan, liquid sealant Loctite 5900H, Three bond 1217H or equivalent should be applied on oil pan. The part must be assembled within 5 minutes after sealant was applied.

Bead width: 2.0 - 3.0 mm (0.08 - 0.12 in.)

Courtesy of HYUNDAI MOTOR AMERICA

NOTE:

When applying sealant gasket, sealant must not be protruded into the inside of oil pan.
To prevent leakage of oil, apply sealant gasket on the inner threads of the bolt holes.

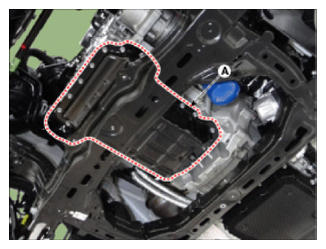

Install the oil pan (A). Uniformly tighten the bolts in several passes.

Tightening torque

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

NOTE:

After assembly, wait at least 30 minutes before filling the engine with oil.
Always use a new drain plug gasket.

Install in the reverse order of removal.
Fill the engine oil.
(Refer to Lubrication System - "ENGINE OIL ")
