Removal and Installation
WARNING: This page is about a different variant/trim than selected.

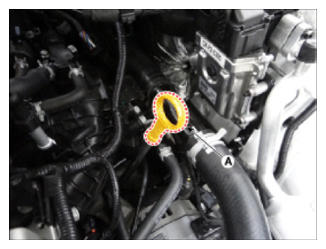

- Remove the oil level gauge (A).
- Remove the engine room under cover and LH side cover.
(Refer to Engine and Transmission Assembly - "ENGINE ROOM UNDER COVER ")

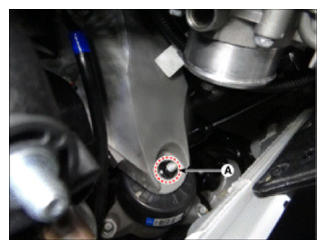

- Remove the LH engine mounting support bracket nut (A).
Tightening torque:
63.7 - 83.4 N.m (6.5 - 8.5 kgf.m, 47.0 - 61.5 lb.ft)
- Remove the alternator.
(Refer to Engine Electrical System - "ALTERNATOR ")

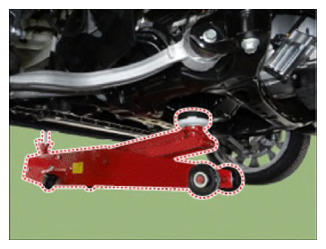

- Install the jack to the edge of oil pan to support the engine.NOTE:
- Insert the rubber block between jack and oil pan.

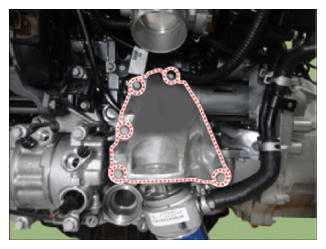

- Remove the LH engine support bracket (A).
Tightening torque:
49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.2 - 47.0 lb-ft)

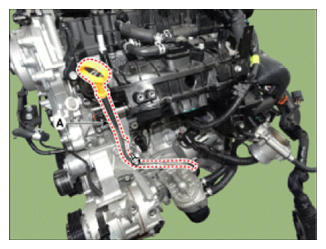

- Remove the oil level pipe (A).
Tightening torque:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)
- Install in the reverse order of removal.
